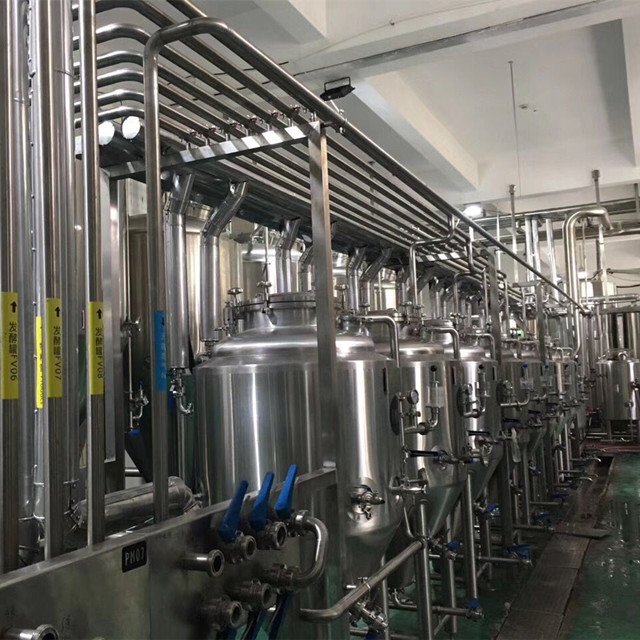

What are tank equipment and accessories included?

Shuangzhan machinery not only offer stainless tank, but also provide sanitary stainless steel accessories for tank, a complete system. Here we will list some main components.

Pressure relief valve

We can call it pressure safety valve, it keeps contant pressure in tanks when over or under pressure, widely used for beverage production tanks. There are different types, pressure relief/vacuum valve, pipeline safety valve.

  • sanitary stainless steel 304 or 316 constructed.

  • 1"/1.5"/2" size.

  • clamp/threaded/welded end are avaiable.

Manual/pneumatic control valve

Shuangzhan machinery provides sanitary butterfly valve, ball valve, sample valve, solenoid valve both manual or pneumatic control.

  • butterfly and ball valve control liquid.

  • sampling valve for getting beverage or beer samples from tanks to tasting or chemical analysis.

  • solenoid valve open the cooling media pipe to cool tanks.

  • clamp/threaded/welded end are avaiable.

  • sanitary stainless steel 304 or 316 constructed.

Pressure adjusting valve

Pressure adjusting mechanism consists of the adjustable pressure valve, manometer and connection lock nut (only if you use union connection), it is also referred as spunding valve or bunging device, without manometer is available.

  • sanitary stainless steel 304 or 316 constructed.

  • 1"/1.5" or DN25/DN40 size.

  • clamp/threaded/welded end are avaiable.

Carbonation stone

Canbon stone is a optional accessory for beer production, the function is adding carbonation for beer inside tank before bottling.

  • sanitary stainless steel 304 or 316 constructed.

  • clamp/threaded end are avaiable.

  • length customized, such as 4", 6",8"

  • NPT/BSPT/BSPP female or male threaded, clamped.

ClP cleaning spray ball

A necessary part for all stainless steel tanks, to clean and sanitizing tank inside, there are fixed and rotatry types. Different length, different ball diameter, different place to drill.

  • sanitary stainless steel 304 or 316 constructed.

  • clamp/threaded/welded end are avaiable.

  • 1/2", 3/4", 1", 11/4", 1.5", 2" or DN15/DN20/DN25/DN32/DN40/DN50

  • NPT/BSPT/BSPP female or male thread

Sanitary weld-on fittings

We say weld-on or butt welded clamp ferrule/liner, it is a great connection between tank and other functional accessories or equipment, Shuangzhan machinery offers varible wall thick, length, size ferrules, all of them made by advanced LG Mazak CNC machine, nice finish, excellent accuracy.

  • sanitary stainless steel 304 or 316 constructed.

  • customized length is available, common is 21.5mm, 28mm etc

  • 1/2", 3/4", 1", 11/4", 1.5", 2", 2.5", 3", 4", 6", 8", 10", 12"

  • DN15/DN20/DN25/DN32/DN40/DN50/DN65/DN80/DN100/DN125/DN150/DN200/DN250/DN300

Clamp racking arm

Tri Clamp racking arm tubing is a special valve for draining of pure beverage above level of yeast from the beer tank. Shuang machinery's racking arm is nice finish, no any sand hole, easy disassembly and clean, PTFE sealing.

  • sanitary stainless steel 304 or 316 constructed.

  • 1"x2", 1.5"x2.5" type, customized is available.

  • clamp/threaded/welded end are avaiable.

  • 45/60/90/120/140 degree optional.

Sanitary tank manhole cover and lid

Shuangzhan machinery provides quality tank manways, there are round pressure manhole, round non-pressure manhole, square/rectangle manhole, oval and side manway, sight glass manway. It is a window to check tank inside and fill raw material, the operator even can repair something inside through this.

  • sanitary stainless steel 304 or 316 constructed.

  • 150mm to 800mm of round manhole, 150x250, 180x280, 330x430, 430x530 of square and oval manhole.

  • 100mm high of round and oval type, 75 or 80mm high welded neck of square.

  • 3-4 bar pressure of pressure type, customized is available.

  • food grade finish inside and outside.

  • strong welding line.

Food grade hose

The hose is food grade, heat resistant, pressure hose for connecting brewhouse, fermentation tank and other beer equipment.

Product handling armature

Armatures for brewers to manipulate with wort or beverage in hose and pipe easily between tanks. We can weld them together or use clamp connecting. Clamp type is better to repaire.

Stainless steel weldless 150lb fittings

it includes hose barb, reducer, socket, union, coupling etc.

Filling level indicator

We call it level gauge as well, it serve to indication and measure the beer level inside the tanks.

Sanitary welding and clamp pipe fittings

Shuangzhan supplies sanitary elbows, tees, crosses, reducers with welded and tri clamp ends. Excellent finish, 100% round ends, along with MTRs.

  • sanitary stainless steel 304 or 316 constructed.

  • 1/2", 3/4", 1", 11/4", 1.5", 2", 2.5", 3", 4", 6"

  • DN15/DN20/DN25/DN32/DN40/DN50/DN65/DN80/DN100/DN125/DN150

  • SMS/DIN/ISO etc standard.

  • food grade finish.

  • welded/clamp/threaded ends.
