Sanitary Pneumatic Actuated Tri Clamp Ball Valve SS304/SS316

This kind of ball valve is a pneumatic type sanitary ball valve with triclamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow.

Quantity:

Sanitary stainless steel pneumatic ball valve, horizontal type. Acutator is aluminum material.


Specification:

Sizes are available from  1/2" to  4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4")

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body can be AISI 304 or AISI 316L.

Valve seat: Teflon (PTFE)

Max. working pressure: 145psi (10bar)

Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections: tri-clamp / tri-clamp, others available upon request.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Direct 2-way body.


Options

End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.

Valve body can be three-way: T type or L type ball core for choose from

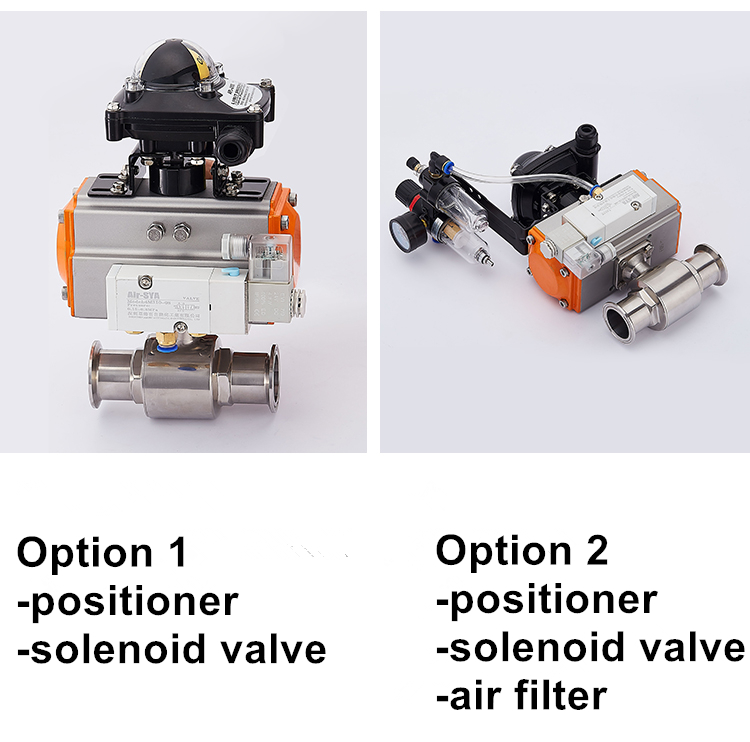

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)---air to open, spring to close

  • NO operated: normally open (fail open)---air to close, spring to open

  • AA operated: double acting---air to open, air to close


Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
