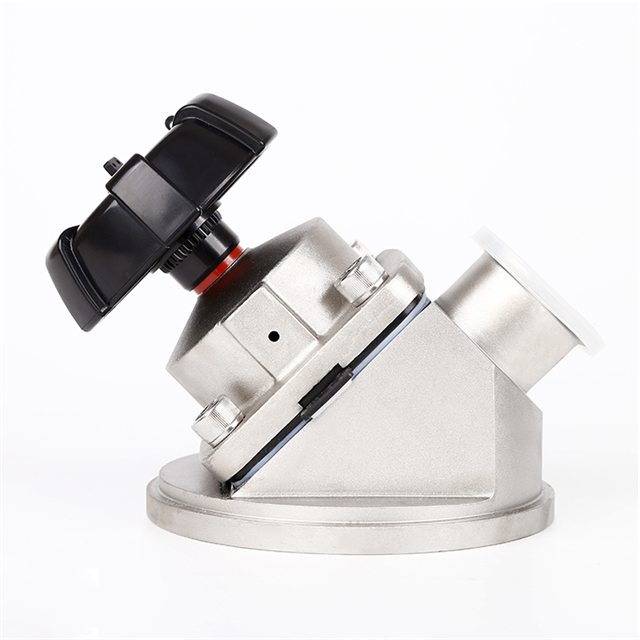

Sanitary Stainless Steel Manual Tank Bottom Diaphragm Valve

Availability:
Quantity:

JOWIN DIAPHRAGM VALVE

What is the sanitary tank bottom valve?

Sanitary tank bottom valve is designed for control of ultra-pure, sterile, aggressive or abrasive fluids. Enables especially optimal filling and emptying vessels with a less dead leg. The valve body consists of a block with no weld seam, machined out of high-quality stainless steel. The Tank Bottom Valve has two welding bevels to ease the welding and valve positioning operations.


Specifications:

Material:
Body: Cast/316L
DiaphragmEPDM+PTFE

Actuator: SS304 stainless steel or plastic

Sizes: 3/4″ – 4″, DN20-DN100



Connection:
Clamp End or Weld End



Body Type:
Direct Connection (Two Way), but we also provide equal T or reducing T.



Operation:
Normal Open/Normal Close



Working Temp.: if with actuator
DiaphragmEPDM+PTFE(-10°C~150°C)

Stainless steel actuator: -12° F to 302° F (-20°C to 150°C)

Plastic actuator: -12° F to 266° F (-20°C to 130°C)


Working Pressure:

Max10 Bar



Surface:
Inside Polished to Ra0.5µm

Outside: Sand Blasted and electric polish


Actuator:

Control air pressure: 70-116 (5-8bar)

Sterilization temperature: 302° F ( 150° C, MAX 20 min)

Pneumatic connection: G1/8″ (BSP)




Safety packing:
