Sanitary SS316 Pneumatic Actuated Diaphragm Valve 1/2 and 3/4in.

Availability:
Quantity:

Diaphragm valves are your best choice for sanitary and hygienic processing

mini type: 1/2" with 25.2mm clamp ferrule, 3/4" with 34mm TC or 25.2mm.


JOWIN DIAPHRAGM VALVE


Specifications:

Material:
Body: Cast/316L
Diaphragm: EPDM+PTFE

Actuator: SS304 stainless steel


Connection:

Clamp End or Weld End


Body Type:

Direct Connection (Two Way), but we also provide equal T or reducing T.


Operation:

Normal Open/Normal Close


Work Temp.:
Diaphragm: EPDM+PTFE(-10°C~150°C)
Work Pressure:

Max: 10 Bar


Surface:
Inside Polished to Ra≦0.5µm

Outside: Sand Blasted and electric polish


Safety packing:

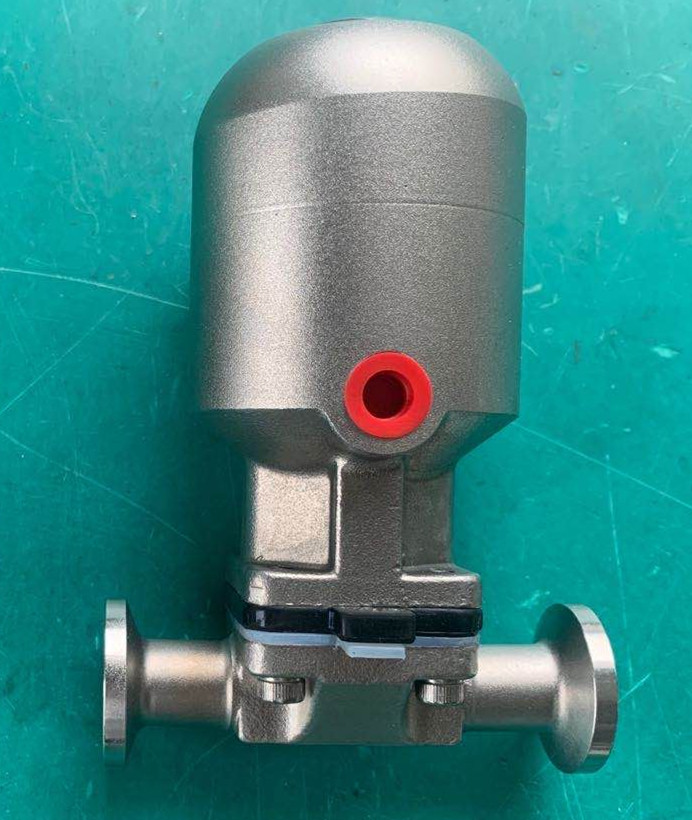

actuatedvalve (3)
