SS316L 2-way Diaphragm Valve with Manually Operated Actuator

fiber glass handle or stainless steel handle
  • NTDAVM

  • JOWIN

Availability:
Quantity:

JOWIN DIAPHRAGM VALVE


Specifications:

Material:
Body: Cast/316L
DiaphragmEPDM+PTFE
Actuator: SS304 stainless steel

Connection:
Clamp End or Weld End

Body Type:
Direct Connection (Two Way), but we also provide equal T or reducing T.

Operation:
Normal Open/Normal Close

Work Temp.:
DiaphragmEPDM+PTFE(-10°C~150°C)

Work Pressure:
Max10 Bar

Surface:
Inside Polished to Ra0.5µm
Outside: Sand Blasted and electric polish

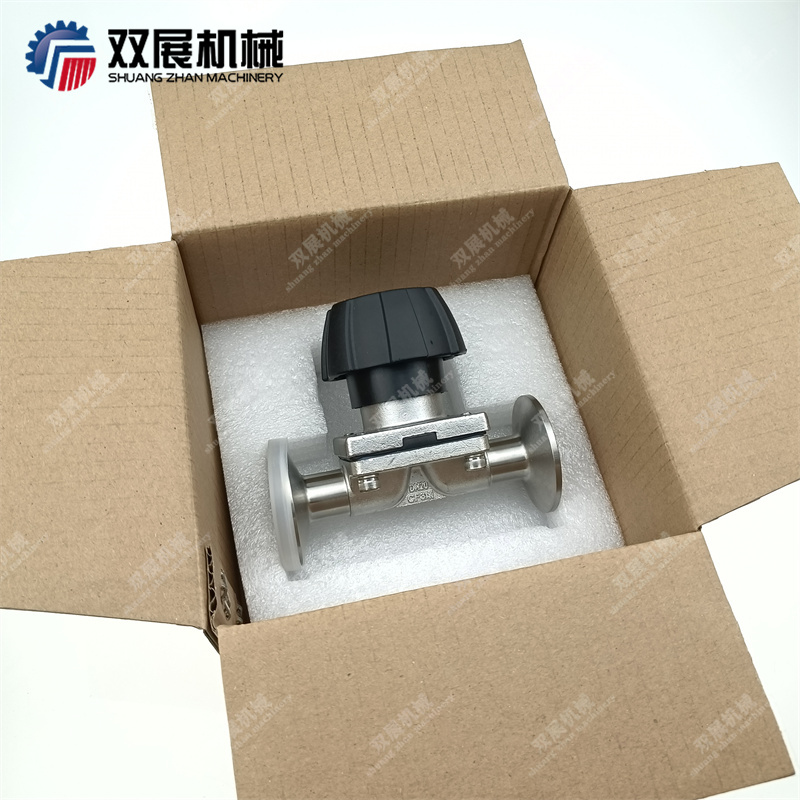

Safety packing:


diaphragm valve SS (2)
