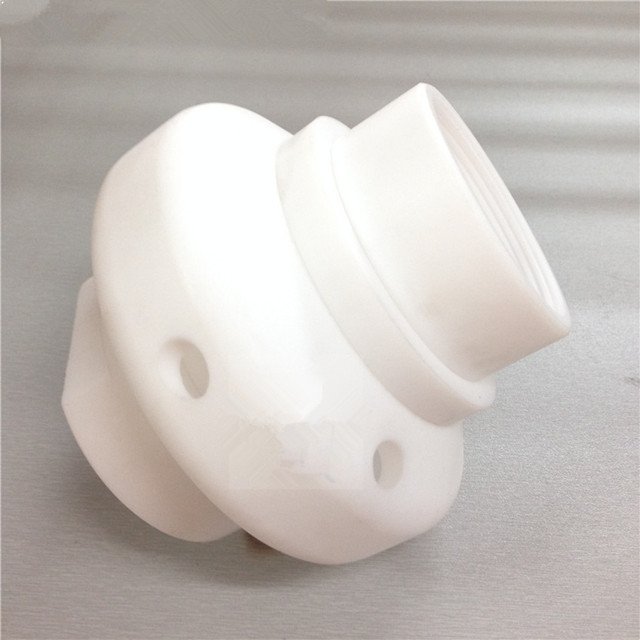

PTFE Rotating CIP Tank Spray Ball-FNPT Threaded Connection

SS304 or SS316 optional
Tri Clamp ends, Female/Welded/Pin type are available
1/2" to 2" we can provide

Quantity:

PTFE 360 rotating spray nozzle for enamel reactor

Material :TEFLON

Spray angle: 360°

Connection BSPP: 1/2", 3/4", 1",2", and 3"

MOQ:1pcs

Improved design for even better clening results



DESIGN FEATURES

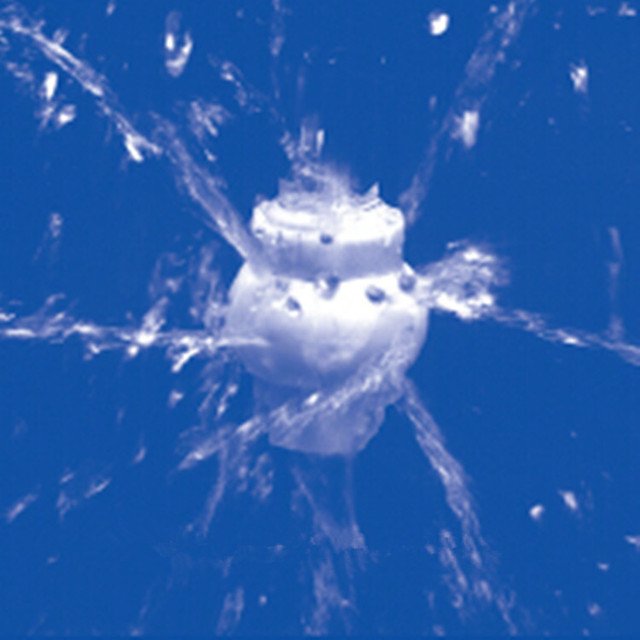

The reactionary force of the cleaning liquid rotates the Model Rotary PTFE spray nozzles. When combining the nozzle's  multiple solid stream orifice configuration, and this rotating motion, a solid stream spray for quick and effective automated cleaning of tanks,vessels,containers,and equipment is produced. SInce no external power source is required to rotate the nozzles. They are especially well suited for clean-in-place systems. The PTFE spray nozzles offer exceptional performance in low-pressure cleaning and rising applications. fluoropolymer resin making them perfect for use in harsh chemical      and corrosive environments.

  • Constructed of TEFLON

  • Maximum operating temperature of 200°F(93°C)

  • Spray angles range from 180° to 360°

  • 1/2", 3/4", 1",2", and 3" threaded inlet connections(NPT or BSPT)

  • Flow rates range from 4 to 391 gpm(15 to 1480l/min)

  • Pressures range from 10 to 50 psi(.7 to 3.5 bar)
