Sanitary Stainless Steel Clamp Pneuamtic Actuated Aspetic Sampling Valve

Sampling valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain.

Quantity:

With shuangzhan machinery sampling valves you can take representative samples in a variety of hygienic processes including food, beverage, biopharm. These reliable aspetic valves provide the high accuracy, exceptional reproducibility and excellent reliability required for high quality, cost-effective sampling.


Two operation methods: Manual and actuated


Features:

  • Design ensures hygienic and contamination-free sampling

  • Easy to operate

  • Highly reliable operation (rated to 10 bar) and three year warranty for all metal parts, provides spare gaskets.

  • Safe sampling through features such as non-return, quick couplings, pressure relief valve for steam and more


Materials: SS316L or SS304
End: 1.5", 1/2" or 3/4" tri clamp end, butt weld end is available
Diaphragm: PTFE
In/out port: 1/2" or 3/4" tri clamp (25.4mm), hose barb, the cap is rubber or metal


Standard Design
Aseptic sampling valve is made from three parts: valve body, valve head and one piece of diaphragm. A rubber diaphragm valve is put at the axis of valve head, acting as an extensible valve core.


Zero corner design, the real hygienic.

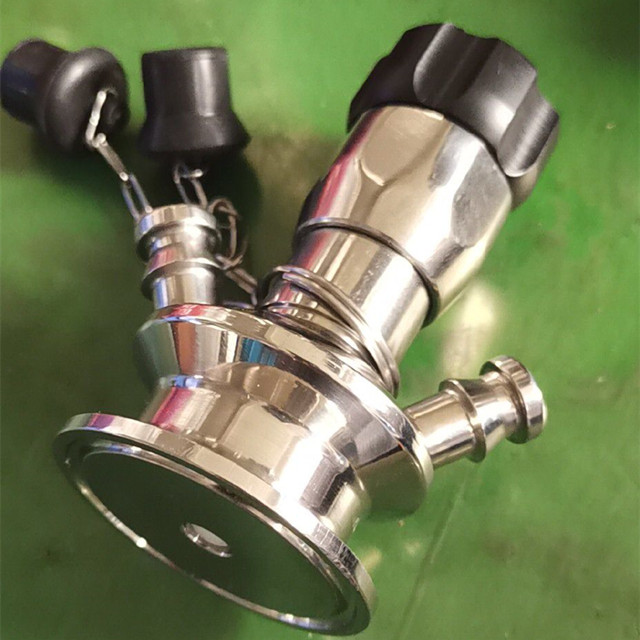

hygienic sampling valve (3)

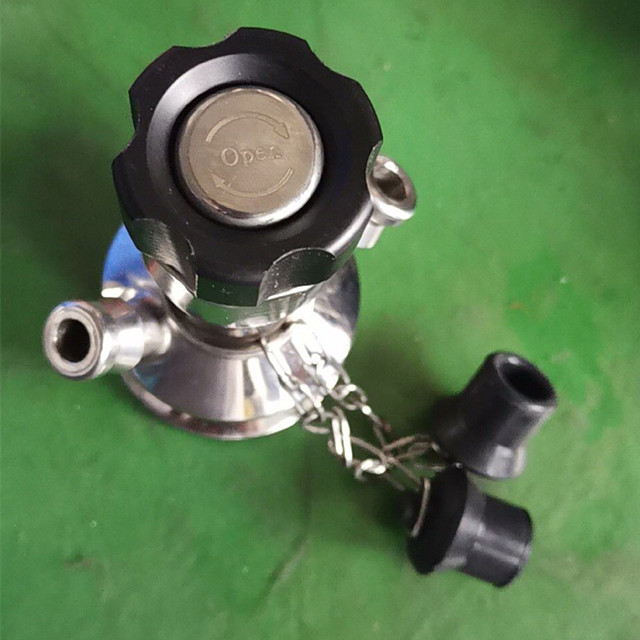

hygienic sampling valve (2)
