Sanitary Stainless Steel Welded On In-Line Sight Flow Indicator

Availability:
Quantity:

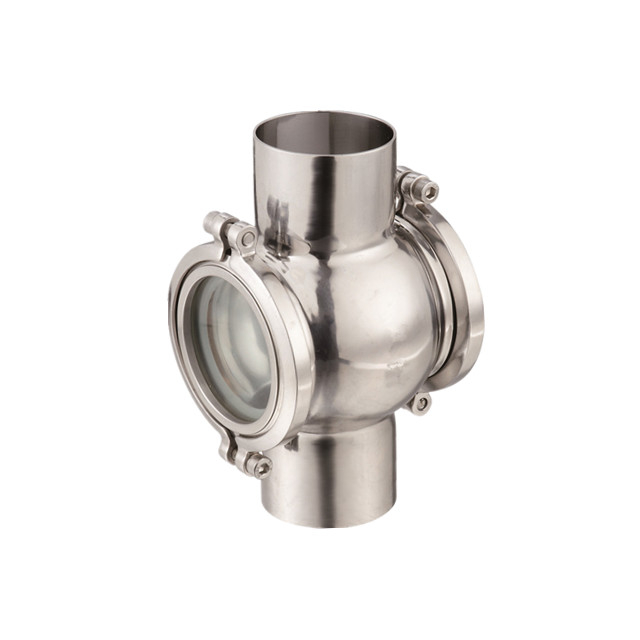

Sanitary Cross type Sight Glass ball body

Inline Tri Clamp sight glasses allow you to view product along tank connections, drains, or hoses. This type of sight glass is useful for tracking color or consistency when transferring product. Each stainless steel sight glass comes apart for easy cleaning.


Sanitary Cross type Sight Glass is four way design, it is a general and typical sight glass. Cross type sight glass is made out of stainless steel SS304 or SS316L, size from 1″ to 4″. Being able to observe the flow condition of a pipeline, and monitor the fuild without opening or unassembling the installation. Wellgreen sanitary cross type sight glass is widely used in brewery, dairy, food, cosmetic, bio-pharmaceutical industries.


Shuangzhan machinery manufacture high quality cross sight glass with nice finish, food grade and BPE grade.


Product Name: Four-way/Cross Sight Glass-butt welded
Protective sleeve  Material:AISI 304(1.4301) AISI316L
Gasket  Material:EPDM,NBR, silicon
working pressure:5 bar to 10 bar according to sight glass size
Working Temperature:

-10°—150 °C (Basic type);Basic type with lamp:- 10°—80 °C (depending on light heat resistance)

Availably  size:DN25-DN100 1"-4"
Availably connection:Clamp / weld / thread
Availably standard:DIN/ SMS/  IDF
Assemble way:the glass can be installed on the equipment through clamps.
Advantages:No retention,zero dead angle,high light,white cold light source,waterproof,explosion-proof
Application scope:food, pharmacy, cosmetic, Chemical, etc
Packaging Details:Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
