Stainless DIN11851 Sanitary Union Round Blank Nut with Seal Disc Blindmutter

din11850,din11851
SS304/SS316L

  • NT-RH-DIN
  • NEW TEK
Quantity:

sanitary DIN11851 Blindmutter

Shuangzhan macinery provides couplings for pharma, food and dairy of high quality. All of our couplings are produced from forged material and meet the highest requirement. please let us know free if  you are looking for a special size or quality. We can make elbows, tees, crosses, hose barbs all with din11851 ends.

Applications:

pharma, food and dairy etc


Features:

Material: stainless steel 304

Finish inside : Ra. <0.8 µm

Sizes: DN 10 to DN 150


Working pressure:

DN 10 to DN 40  (40 bar at 20°C)

DN 50 to DN 100  (25 bar at 20°C)

DN 125 to DN 150  (16 bar at 20°C)


Gasket available:

BUNA-N: -30°C to +100°C

EPDM:-40°C to +130°C

FPM/FKM: -20°C to +200°C

Silicone (VMQ) :-60°C to +200°C


Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Sanitary fittings are used in the food, beverage, biotech, pharmaceutical, and other sanitary process industries to transport fluids through pipe lines and are available in a range of materials, finishes, and shapes. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

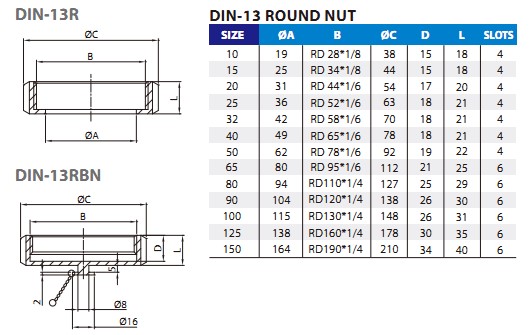

nut
