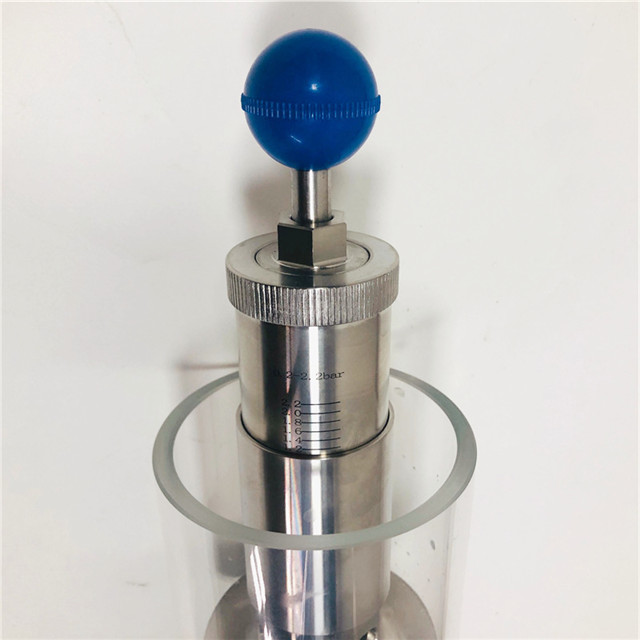

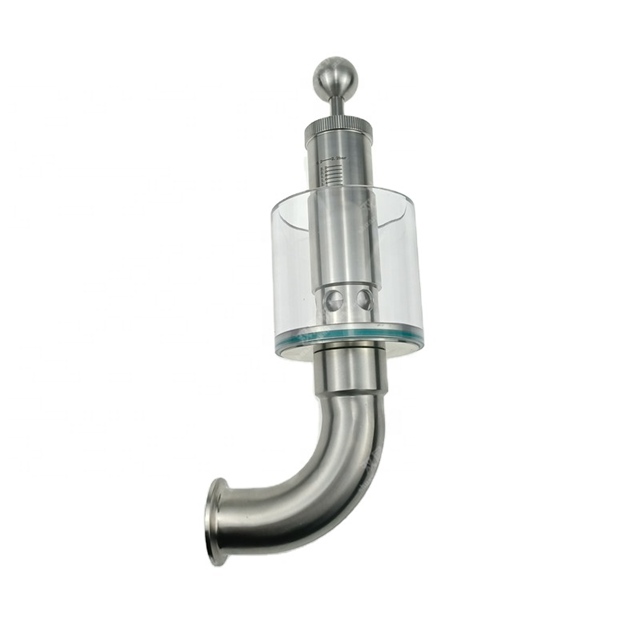

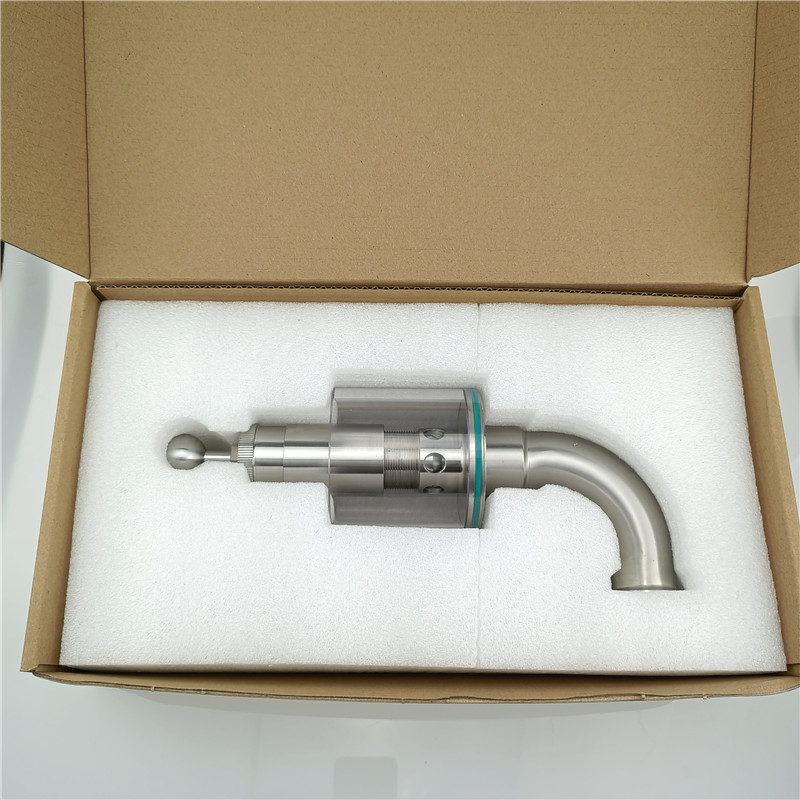

Stainless Steel 2.2 Bar Tri Clamp Bunging Valve Pressure Relief Valve

variable pressure relief valve, sometimes referred to as a "Bunging" or "Spunding" valve,0.2 - 2.2 bar (2.9 - 30.9 PSI)

Quantity:

Variable Pressure Relief Valve | Tri Clamp 1in. and 1.5 in. 2.2 bar - SS304 / FPM food grade

NEW DESIGN, LONGER LIFETIME


This is a variable pressure relief valve, sometimes referred to as a "Bunging" or "Spunding" valve, traditionally used for controlled carbonation of products over time. Its operating range is 0.2 - 2.2 bar (2.9 - 30.9 PSI) however it is not recommended for use beyond the pressure rating of the vessel. Our tanks are warrantied as a low pressure system up to 14.7 PSI (1 atmosphere). Provides calibrated relief of pressure for the carbonation of a variety of beverage products. Polycarbonate housing.

1. 1.5" triclamp

2. SS304 material

3. without pressure gauge

4. polish inside and outside

5.clamp ferrule is 50.5mm.
