Stainless Steel Brewery SMS Hygienic Welding Male Fittings

Quantity:

SMS Unions (Swedish Manufacturing Standard) come complete with a captive seal designed to provide a smooth, crevice-free internal bore. The fittings can be welded & fabricated onto a range of products including special bends, tees, valves & manifolds.

Sanitary stainless steel fittings and hardware components, though often small, are hugely important in keeping your hygienic fluid operations locked down and safe.

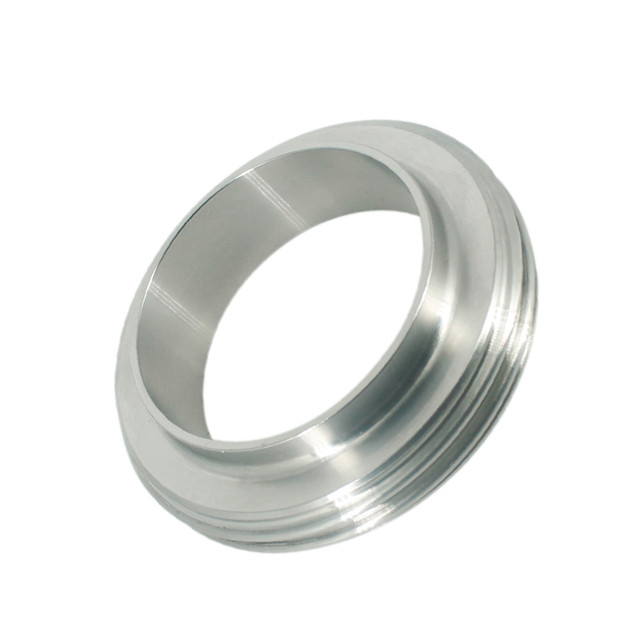

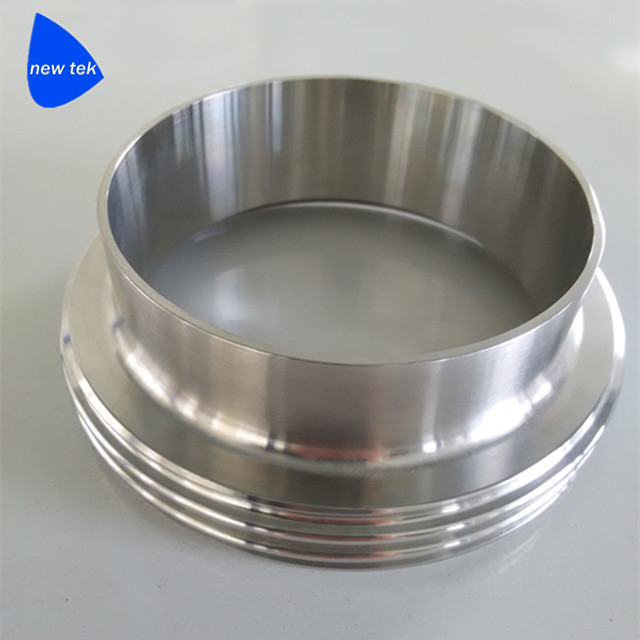

  • Sanitary SMS Weld Male

  • 304/316L grade of stainless parts, EPDM/VITION/SILICON/BUNA for seal

  • 19mm, 25mm,32mm,38mm,51mm,63.2mm,76mm,102mm etc

  • Food, dairy, beverage, meat processing, pharmaceutical, chemical, and many other industries application

  • Heat numbers and MTR's along with products


SMS (Swedish Metric Standard) Union is designed for use in applications that don’t require regular dismantling and they are not forgiving of tube misalignment, they do however have the advantage of being suitable for removal of adjacent pipe sections without disturbing other joints.  The sanitary union is comprised of a round slotted nut, a weld male end, a liner piece the nut slides over and square section gasket. The nut has round threads.  Normally shown in metric sizes, SMS fittings actually fit up fairly closely with imperial tube OD sizes.

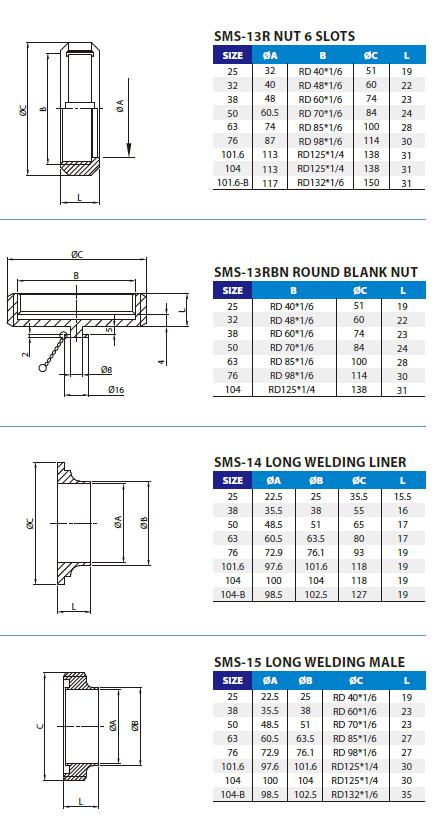

sms unions
