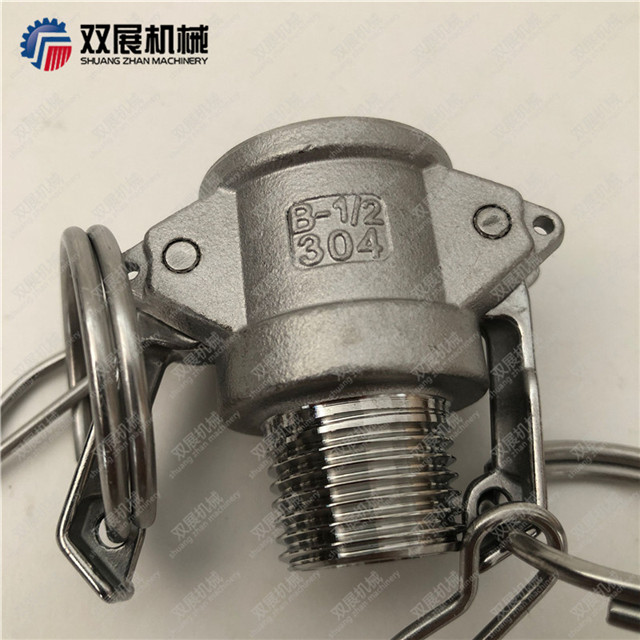

Stainless Steel Camlock Type B Cam And Groove Hose Fitting

stainless steel 304 or 316 are available
B type
bspp/npt/bspt threads are available


camandgroovefitting (2)

camandgroovefitting (26)

We supply a full range of quality Stainless Steel Camlock Fittings. Often referred to as a Stainless Steel Camlock Coupling or Stainless Steel Camlocks. Our high quality Stainless Camlock Fittings are offered in 1/2"-10" sizes, all manufactured in high grade Stainless Steel 316. These SS Camlock Fittings are low in cost, highly durable and are used in all industries from the food and beverage markets, to the fuel and oil Industry. The 1/2" Stainless Steel Camlock is also offered in Stainless Steel 304 in the Homebrew Hardware section.

Type B couplers are generally used with the same size Type F adapters, however, Type A and E adapters are compatible, as well as the DP (Dust Plug).
Casting method:forged(SS precision investment casting and CNC precisely machined)
OEM service: available on request
Body material:stainless steel Other material are available on request
Handle material: stainless steel CF8M or CF8 casting
Pins.Rings and Safety clips of our SS camlock: We use steel plated Pins,Rings and Safety clips.
(Note: If client don't need Safety clips, and the qty is large, then we can decrease the cost safety clips)
Standard: MIL-C-27487 / DIN2828/A - A-59326/API /ANSI /BS/DIN/JIS
Application: oil, mining, agriculture, food, chemistry, and fire protection industries.
Size:1/2'' to 10''
Type: A,B,C,D,E,F,DC,DP
Sealings of our acoples rapidos kamlock en acero inxidable: NBR EPDM Viton PTFE envelop gasket ,SILICONE.VITON Other materials are available on request.
Test pressure:3/4″-2″    250PSI(17.6bar)
3″-4″     200PSI(14.8bar)
2 1/2″    225PSI(15.8bar)
6″       150PSI(10.5bar)

The Working Pressure recommendation for this part is based on use of mating fittings at ambient temperature of 70° F with standard Buna-N Seal.
