Stainless Steel Mixing Blending TanksTop Open

Quantity:

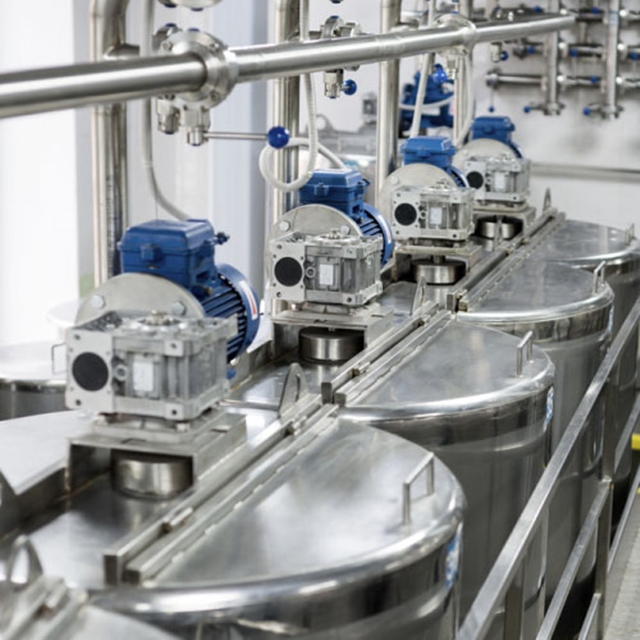

Stainless Steel Mixing Tanks

Shuangzhan machinery provides mixing/blending tanks are available in a wide variety of shapes, including vertical, round, horizontal with hinged lid, torispherical head, slant bottom, cone bottom, and dish bottom. The tank transition sections use circular arc transition, which means there are no dead corners, making it easier to clean. We offer both single-wall or jacketed mixing tanks to allow heating or cooling. Agitation specifications are based upon customer request. .

Features:

  • Volume: 200L-10000L or based upon customer requirements.

  • Available in either sanitary 304 of 316L with any kind of connections.

  • Interior finish surface Ra<0.28µm ~ 0.6µm or finer

  • Outer surface can be polished, wire-drawn, and sandblasted according to customer requirements.

  • Can be designed with low heating, cooling, a high-speed mixing system, a sealing pressure system, a vacuum system, a measuring system, and more.

  • Based on mixing materials and requirements of the mixing effect, the structure of the impellers can be either turbine type, paddle, anchor type, frame type, screw conveyor or other.

Optional Configuration:

Aseptic air filter, thermometer (digital display or dial-type), PH meter, pressure gauge, steam sterilization hole, sight glass(es), sanitary manhole, liquid in-outlet, CIP spray ball, liquidometer and liquid level control system (bearing module, non-contact ultrasonic, static pressure transmitting device) and more based upon customer requirements.

Application:

Vessel can be used as a storage tank additionally. Liquid material mixing or the storage of such things as medicine, food, fruit juice, dairy products, seasonings, brewing, pharmaceutical fluids, chemicals, and other biological engineering.

Design Parameter:

  • Design Pressure: ~0.1MPa ~ 1.0MPa, ATM ~0.5MPa

  • Design Temperature: 32ºF ~ 320ºF

Material:

  • Interior: 304SS or 316LSS

  • Jacket: 304SS

  • Insulation: PU or Rockwool

  • Legs: 304SS

Connections:

In-Outlet: Flange, Tri-Clamp

Surface Finished:

  • Finish Type: Mechanical / Electrolytic polishing, sandblasting, pickling and passivation.

  • Polishing Precision: Inner Surface Ra <0.4µm, Outer Surface Ra 0.6µm
