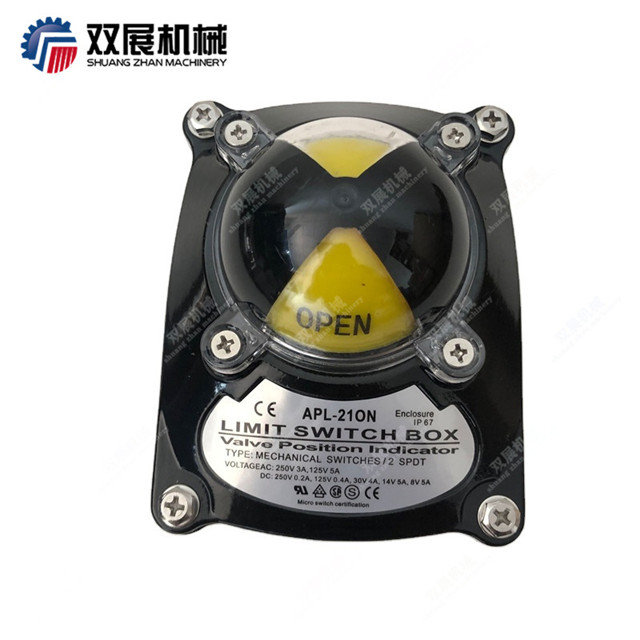

Valve Position Indicator with Stainless Steel Adjustable Mounting Bracket

IP67, Explosion proof available

Quantity:

Stainless steel adjustable type. Explosion-proof type is ok to provide.

The limit switch box is a multifunctional unit that gives panaoramic visual indication of the valve position as well as an electrical feedback from two micro switches. The terminal strip and twin conduit entry points allow a solenoid valve and micro switches to be wired up through a single mult core cable.

ItemStandard
EnclosureWeatherproof IP67/NEMA4 & 4X
Temperature-20°C to 80°C
Conduit Entries2 x M20
Terminal Strips8 points (.08-2.5mm²)
Position IndicatorClosed: Red, Open: Yellow
SwitchesMechanical switch x 2 SPDT
External CoatingPolyester powder coating (black)
ShaftISO Standard (17mm long)
HousingPowder coated die cast aluminium
CamQuick Set spring loaded splined cam (no need to adjust again after initial setting, set without tools)
Mounting InterfaceNamur
Max Current10 AMP AC, 2 AMP DC
