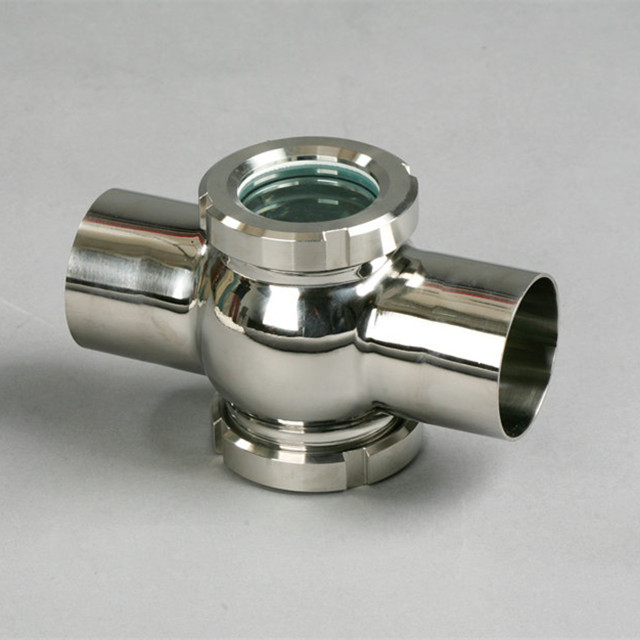

Sanitary Stainless Steel Butt Welded Cross Sight Glass

The circular base or pad flange is suitable for welding into the vessel wall, manway lid or dished head. The sightglass assembly is supplied complete with upper and lower gaskets, glass disc and fasteners.
Availability:
Quantity:

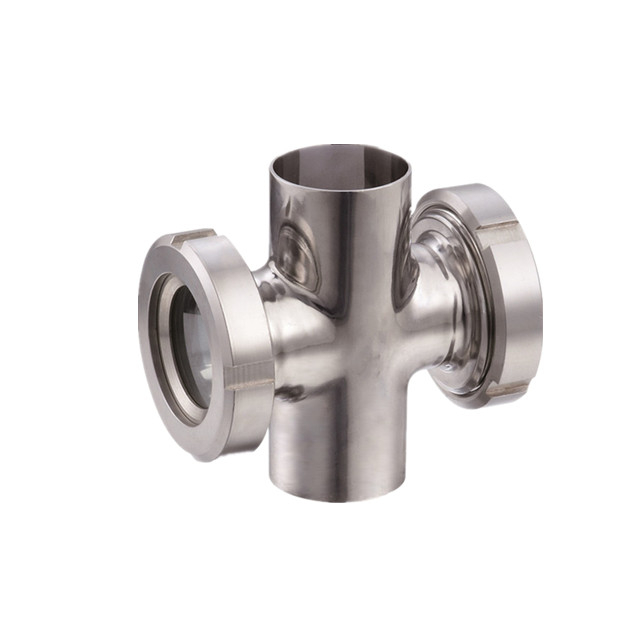

Sanitary Cross type Sight Glass

Sanitary Cross type Sight Glass is four way design, it is a general and typical sight glass. Cross type sight glass is made out of stainless steel SS304 or SS316L, size from 1″ to 4″. Being able to observe the flow condition of a pipeline, and monitor the fuild without opening or unassembling the installation. Wellgreen sanitary cross type sight glass is widely used in brewery, dairy, food, cosmetic, bio-pharmaceutical industries.


Shuangzhan machinery manufacture high quality cross sight glass with nice finish, food grade and BPE grade.



Product Name: Four-way/Cross Sight Glass-butt welded
Protective sleeve  Material:AISI 304(1.4301) AISI316L
Gasket  Material:EPDM,NBR, silicon
working pressure:5 bar to 10 bar according to sight glass size
Working Temperature:

-10°—150 °C (Basic type);Basic type with lamp:- 10°—80 °C (depending on light heat resistance)

Availably  size:DN25-DN100 1"-4"
Availably connection:Clamp / weld / thread
Availably standard:DIN/ SMS/  IDF
Assemble way:the glass can be installed on the equipment through clamps.
Advantages:No retention,zero dead angle,high light,white cold light source,waterproof,explosion-proof
Application scope:food, pharmacy, cosmetic, Chemical, etc
Packaging Details:Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
