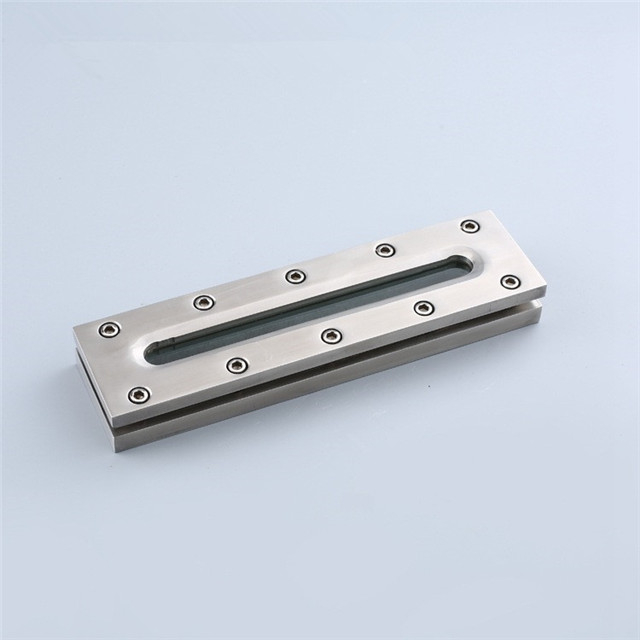

Sanitary Stainless Steel Rectangular Flange Sight Glass

The circular base or pad flange is suitable for welding into the vessel wall, manway lid or dished head. The sightglass assembly is supplied complete with upper and lower gaskets, glass disc and fasteners.

Quantity:

Stainless Steel Flanged Square Sight Glass

Rectangular, D-Ended & Obround view glasses are available for use as level indicators or to observe liquid levels in tanks, vessel and pipework. Replacement glasses are available to DIN 7081 and DIN 8903 and are offered along with additional fasteners and gaskets.Standard lengths viewing lengths are available from 250mm to 1000mm in 70mm wide bodies with an 18mm wide viewing strip.

Borosilicate and Soda Lime Glasses are available to suit the product media, pressure and temperature constraints.

LED strip lighting is now offered to illuminate liquid levels.The bodies or frames are offered in a range of different materials including 304 and 316 stainless steel, carbon steel and exotic materials such as hastelloy.


The view  glasses are available from 2.5 Bar to 25 Bar working pressure
