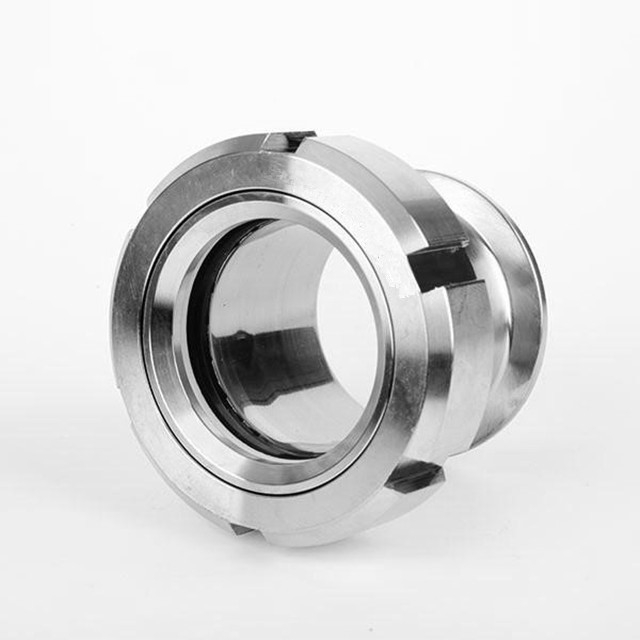

Sanitary Stainless Steel Triclamp Union Sight Glasses

The circular base or pad flange is suitable for welding into the vessel wall, manway lid or dished head. The sightglass assembly is supplied complete with upper and lower gaskets, glass disc and fasteners.
Availability:
Quantity:

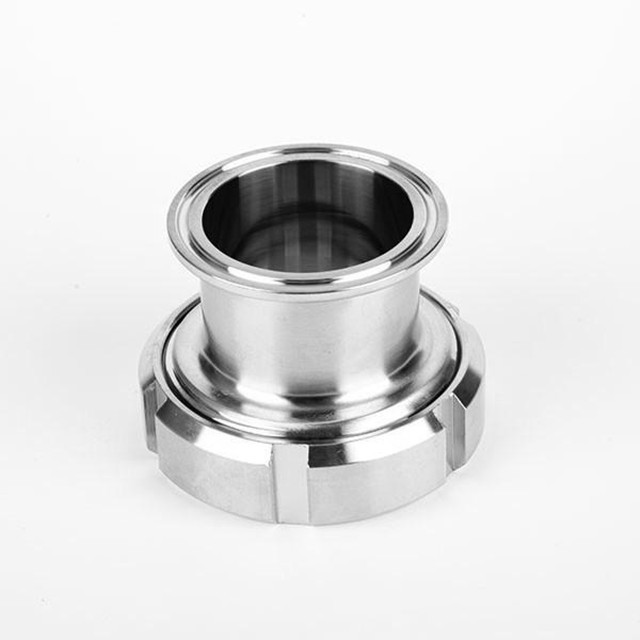

Stainless Steel SMS and DIN Screwed Union Sight Glass with triclamp end.

Based on the DIN 11851 screwed hygienic union the unit is suitable for welding onto the vessel wall, the lid of a manway or dished head.Supplied complete with the special DIN 11851 hygienic male base, with glass disc, gaskets and slotted outer nut.


Size range from DN50 to DN150, 2" to 6"

View glass diameter from Ø50 to 150mm

Standard operating temperatures of up to 200°C (higher available on request)

Standard operating pressures of up to 6 bar (higher available on request)

Materials: The males can be supplied in either 304 or 316L stainless steel as standard with specials also available

We also build custom made assemblies to suit your specific requirements and outside the standard range.
