Sanitary Straight Tri Clamp Sight Glass with Protective Metal Cage

The circular base or pad flange is suitable for welding into the vessel wall, manway lid or dished head. The sightglass assembly is supplied complete with upper and lower gaskets, glass disc and fasteners.
Availability:
Quantity:

Triclamp Inline sight glass

Inline Tri Clamp sight glasses allow you to view product along tank connections, drains, or hoses. This type of sight glass is useful for tracking color or consistency when transferring product. Each stainless steel sight glass comes apart for easy cleaning.

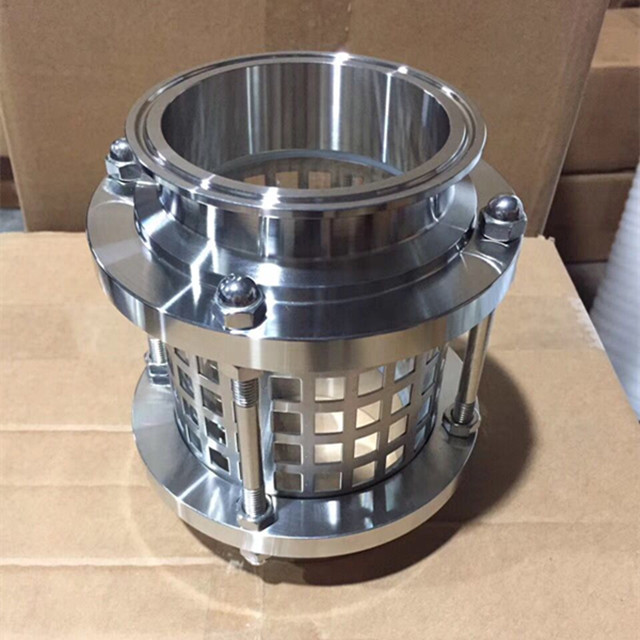

Sight glass with outer metal cage
The sight glass with metal caged cover is common place.This simple yet effective design utilised a borosilicate inner glass tube, food grade seals, 316L SS tubular weld ends with a 304 stainless steel mesh cage for operator protection.


Size range:  1” to 6” and DN 10 to DN 150

Maximum working pressure is determined by tube size and temperature



Product Name:

stainless steel tubular sight glass

Protective sleeve  Material:

AISI 304/316

Gasket  Material:

Silicon/NBR /EPDM,FPM

working pressure:

5 bar to 10 bar according to sight glass size

Working Temperature:

-10°—120 °C(VMQ)

Availably  size:

DN25-DN150/ 1"-6"

Availably connection:

Clamp / weld / thread

Availably standard:

DIN/ SMS

Surface treatment:

CNC lathe

Design:

Full bore design,attachment by self-locking nuts;360°viewing angle;can be used in vertical or horizontal position

Function:

Through it,operator can observe the flowing of the luquid substance clearly and precisely.

Application scope:

food, pharmacy, cosmetic, Chemical, etc

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.
