Sanitary Tri Clamp Sightglass with Metal Shroud Cover

The circular base or pad flange is suitable for welding into the vessel wall, manway lid or dished head. The sightglass assembly is supplied complete with upper and lower gaskets, glass disc and fasteners.
Availability:
Quantity:

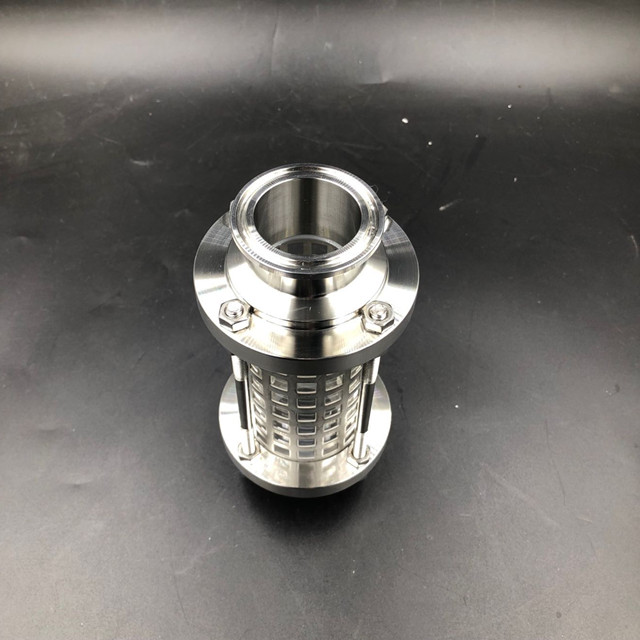

Clamp Sightglass with Metal Shroud Cover


This in line Clamp sightglass is manufactured with a stainless steel outer shroud, giving the operator four viewing windows to the product media.  The design incorporates the EHEDG recommendations for O ring detail and ensures that there is a smooth transition between the borosilicate glass and the 316L stainless steel end fittings assembly.
The O ring seals are both FDA food grade approved and USP Class IV certified. The internal surface finish complies with ASME-BPE-SFF6, however higher finishes and exotic materials can also be supplied. Maximum operating pressure:  3 Bar to 22 Bar dependent upon size and temperature




Product Name:

stainless steel tubular sight glass

Protective sleeve  Material:

AISI 304/316

Gasket  Material:

Silicon/NBR(standard) /EPDM,FPM

working pressure:

5 bar to 10 bar according to sight glass size

Working Temperature:

-10°—120 °C(VMQ)

Availably  size:

DN25-DN150/ 1"-6"

Availably connection:

Clamp / weld / thread

Availably standard:

DIN/ SMS/ RJT/ IDF

Surface treatment:

CNC lathe

Design:

Full bore design,attachment by self-locking nuts;360°viewing angle;can be used in vertical or horizontal position

Function:

Through it,operator can observe the flowing of the luquid substance clearly and precisely.

Application scope:

food, pharmacy, cosmetic, Chemical, etc

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.
