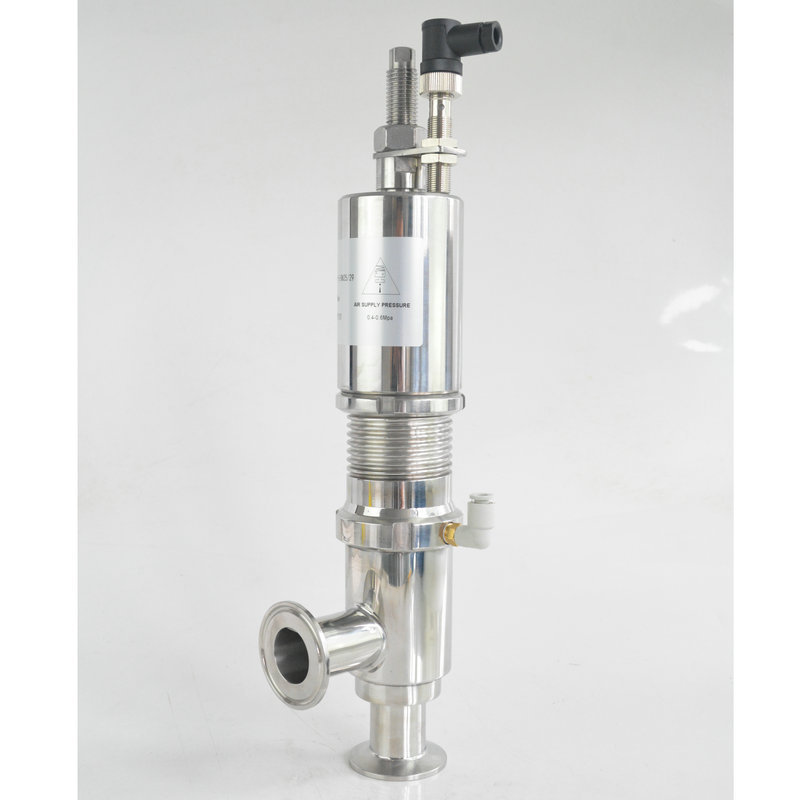

1" Tri Clamp Hygienic Safety Valves with Air Actuator

variable pressure relief valve 0-10bar (0-145psi)
Availability:
Quantity:

Sanitary Pneumatic Safety Pressure Relief Valve

It is durable, manual and pneumatic actuated.



Specifications:

Body Material: SS304 stainless steel or 316L

Sizes: 1"

Seal: EPDM,options: Silicone, Viton (FPM)

Pressure is adjustable to 10bar
6 bar air enough to actuate it



Application of Sanitary Safety Pressure Relief Valves:

Sanitary stainless steel safety valve, also known as "pressure relief valve", is used to control over pressurization in a process piping system.


Working principle:
When the line pressure exceeds the limit set for the safety valve, the valve plug will lift and release the pressure through the side port. The valve will remain open until the line pressure decreases to a value lower than the set value.


Positioner is OK to add.
