Adjustable Small Tri Clamp Spunding Valve 0.2-2.2bar

variable pressure relief valve, sometimes referred to as a "Bunging" or "Spunding" valve,0.2 - 2.2 bar (2.9 - 30.9 PSI)
Availability:
Quantity:

Variable Pressure Relief Valve | Tri Clamp 1.5 in. 2.2 bar - SS304 / Silicone

70mm removable cup, good for small fermenter.

This is a variable pressure relief valve, sometimes referred to as a "Bunging" or "Spunding" valve, traditionally used for controlled carbonation of products over time. Its operating range is 0.2 - 2.2 bar (2.9 - 30.9 PSI) however it is not recommended for use beyond the pressure rating of the vessel. Clear polycarbonate housing.

1. 1.5" triclamp

2. SS304 material

3. without pressure gauge

4. polish inside and outside

5. 38mm or 25mm pipe outter diameter optional, clamp ferrule with the same 50.5mm.

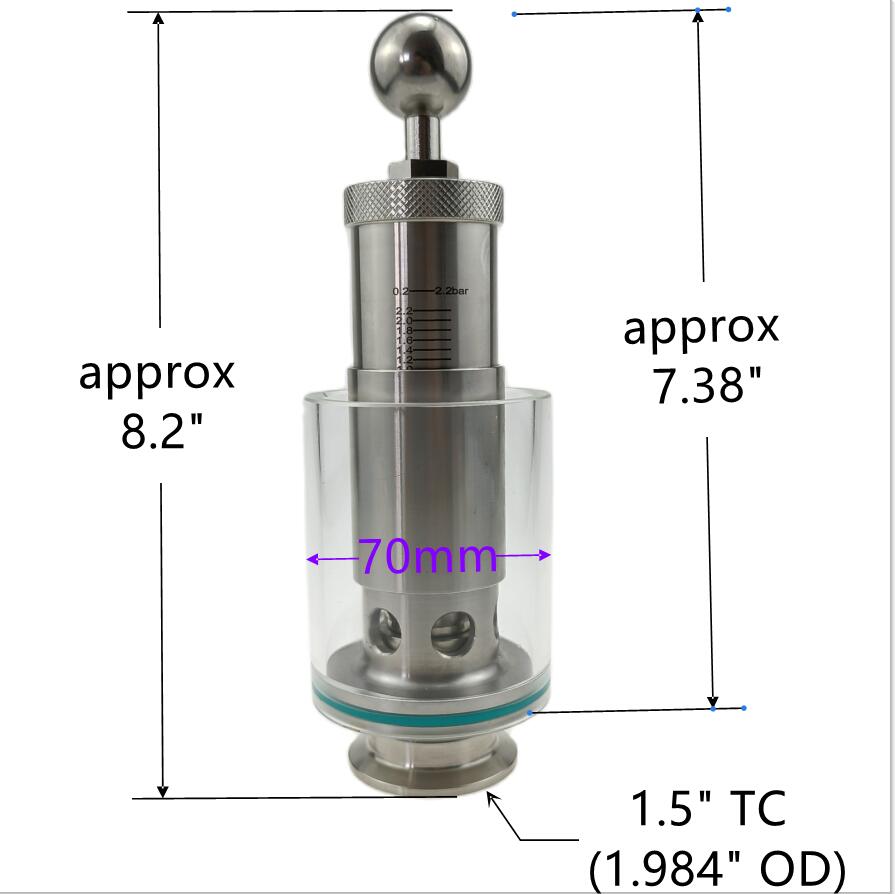

QQ截图20220824130255
