Constructed ss304/ss316 stainless steel, the pump is widely used in beer,food,milk,pharmacy,berverage,comsmetics,chemical industry.
Quantity: | |
---|---|

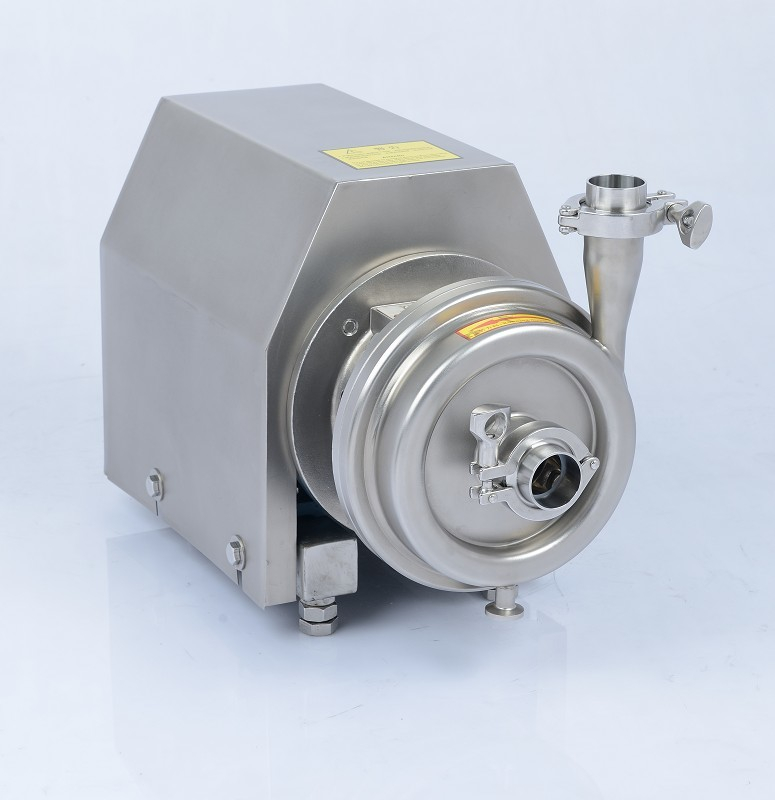

Sanitary centrifugal pump
food grade centrifugal pump meets the highest sanitary requirements
for use in the food-processing and pharmaceutical,dairy,milk,bear industries.
Some of its uses include processes in the brewing, dairies and beverage
industries in general, and with the appropriate options Sanitary centrifugal
pump can also be used in complex applications such as evaporators, concentrators,
distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features of food grade centrifugal pump :
• Different Connection type: Welding; Thread; Clamp
• Different connections standard:DIN,SMS, ISO.
• Open impeller manufactured with stainless steel investment casting technology.
• Sanitary mechanical seal.
• Parts in contact with pumped media AISI 316L or 304
• Pump support from AISI 304
• Inside surface finishing Ra < 0.4 um.
• Outside surface finishing Mirror polished
Options :
• Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
• Cooled or double mechanical seal.
• Motors with additional protection.(movable, ABB Explosion proof).
• Trolley and/ Switchboard with invertor
Name: | Hygienic Food Grade Stainless Steel Sanitary Centrifugal Pump for Milk beer water |
Valve Body Material: | SS304/SS316L |
Seal Material: | EPDM / FPM / NBR |
Max. Flow: | 150 m3/h |
Max. Speed: | 3600 min |
Max. Working Pressure: | 7 bar/99 PSI |
Max. Working Temperature: | 120°C |
Sealing type: | Flushed double mechanical seal/single mechanical seal |
Motor power: | 1.1kw, 1.5kw, 2.2kw etc |
Voltage: | 110V, 220V, 380V |
Surface treatment: | Inner polished and Sandblast outside |
Availably connection: | Tri-Clamp, Thread, Flange |
Availably standard: | DIN, SMS |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, e |
