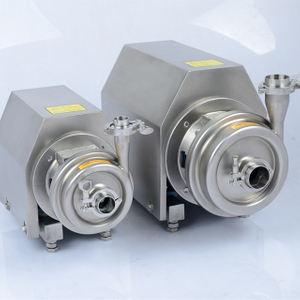

Self-Priming Pump / Sanitary CIP pump are specially designed for pumping materials which containing air or gas, and it can be also be used for negative suction with prior priming as well as with filtration equipment. Self-Priming Pump can be used for food processing,wine, fine oil, syrups, volatile products such as alcohol, acetone and other solvents, or other materials which close to boiling point. However, the mainly using field of Self-Priming Pump is for CIP returning.
The self-priming pump is mainly used to convey materials that contain gas. Therefore, it is widely applied to suck materials in various applications where the liquid level is unstable, or even the liquid level is lower than the pump inlet,or used as a return pump in the CIP system.
Depending on the configuration, the pump mainly adopts ''ABB'' brand high-efficiency M2BAX three-phase AC motor. The pump is designed and manufactured according to IEC60034.IE60072, conforming to CE marking requirements
The explosion-proof motor is available to meet the needs in different applications.
With excellent electric performance, low noise and low vibration, the motor is designed to have standard protection grade of IP55 and insulation grade of grade F.
Working mode: continuous (SI)
Rotation speed: The standard rotation speed of the pump is 1450r/min.
Design and features of food grade centrifugal pump :
• Different Connection type: Welding; Thread; Clamp
• Different connections standard:DIN,SMS,JIS, ISO.
• Open impeller manufactured with stainless steel investment casting technology.
• Sanitary mechanical seal.
• Parts in contact with pumped media AISI 316L or 304
• Pump housing AISI 304
• Inside surface finishing Ra < 0.4 um.
• Outside surface finishing Mirror polished
90° Inlet and outlet
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Motors with additional protection.(movable, ABB Explosion proof).
Trolley and/ Switchboard with invertor
|Seal Material:||EPDM / FPM / NBR|
|Max. Working Pressure:||5-7 bar/99 PSI|
|Working Temperature:||-10℃-120℃ (EPDM)|
|Sealing type:||Flushed double mechanical seal/single mechanical seal|
|Motor power:|| |
|Voltage:||110V, 220V, 380V,450V etc|
|Surface treatment:||Inner polished and Sandblast outside|
|Availably connection:|| |
Tri-Clamp, Thread, Flange
|Availably standard:|| |
DIN, SMS, RJT
|Application scope:||Dairy,food, beverage, pharmacy, cosmetic, e|
