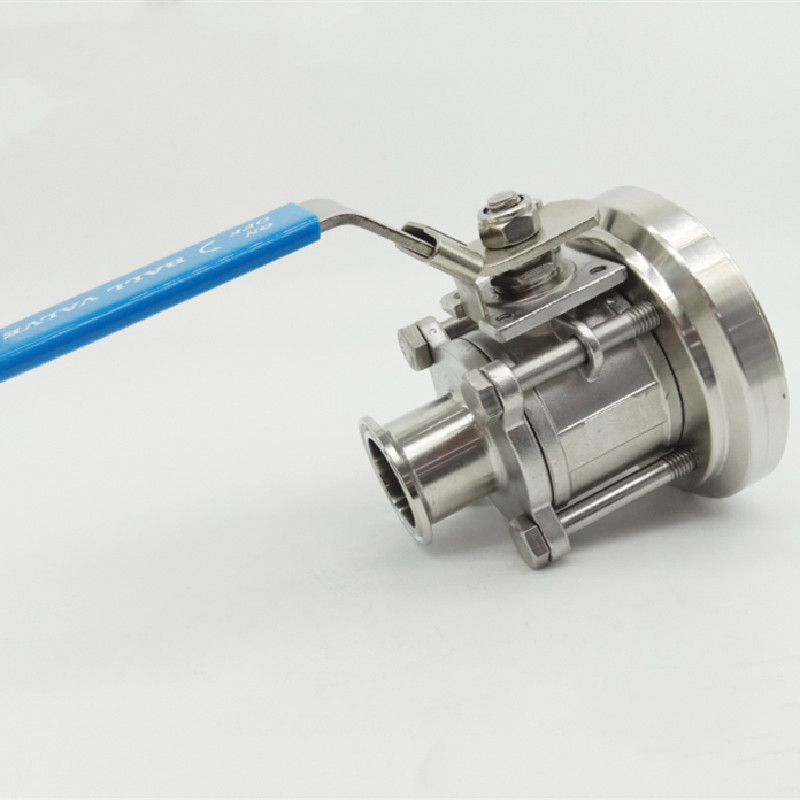

Hygienic Stainless Steel Tank Bottom Ball Valve Bolted Type

3/4",1",11/4",1.5",2",2.5",3",4"

Quantity:

Encapsulated Sanitary Tank Bottom Valve Manually or Actuated


Product Description

-  Welded end

-  Body Working Pressure: 1000 PSI WOG.

-  Clamp End Working Pressure: 200 PSI WOG.

-  Working Temperature: -4°F to 392°F.

-  Investment casting.

-  Fully Encapsulated.

-  Locking handle.

- Full port design.


Specification:

Sizes are available from  1/2" to  4"

Valve body can be AISI 304 or AISI 316.

Valve seat: Encapsulated PTFE

Max. working pressure: 145psi (10bar)

Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections:Welded or flanged

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Technical Parameters

O1CN012z42gL1aVTRaUpiDn_!!2676043335
