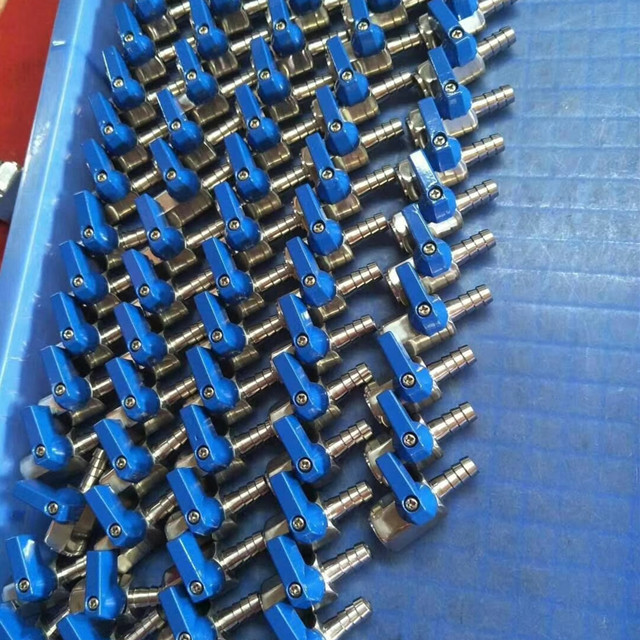

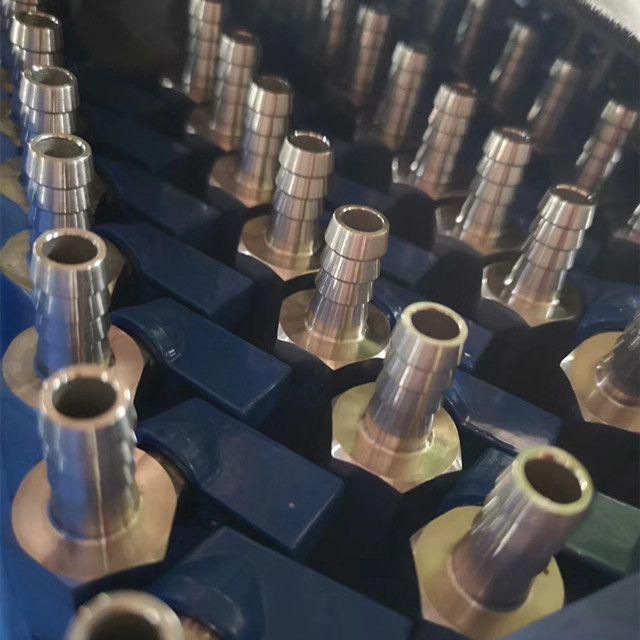

Stainless Steel Mini Ball Valve Female Threads to Hose Barb

mini inline ball valve
1. ss304 or 316 material
2. 1/8"-1", hose barb can be 6mm,8mm,10mm,12mm

Quantity:

Stainless Steel MINI Ball Valve

End option: Male to Male, Female to Male, Female to Female, Female to hose barb, male to hose barb


1000PSI/PN63
Investment Casting
Blow-out Proof Stem
Suitable medium: water, oil, air, some corrosive liquid

Thread type: ZG.G, NPT, BSPT, BSP, DIN259/2999

Lever color: Black/red/blue

Lever material: Aluminum or stainless steel


Product name Ball Valve
1)Material SS201 SS304, 304L, 316, 316L
2)Size 1/8''-1''&DN6-DN25
3)Certificate ISO9001: 2000,CE
4)Working pressure 1000psi(6.4MPa)
5)Connection Ends Threaded (F/F,M/F,MXM)
6)Suitable medium Water, gas, air and some corrosive liquid
7)Temperature Range -20-300 degree C
8)Investment casting body and cap
9) Sealing PTFE
10)stem SS201,SS304,SS316   Adjustable stem packing,
11)Locking option
Our advantage Survival by quality and development by credibility.
Quality first, customer upmost !

100% leakage tested at 100 psi air under water

Blow-out proof stem, ball are made of ss316 or customer request

Pure Teflon seals and seats

Can do OEM products
Shipment by air/by sea etc
Delivery time usual 7-20days around and can negotiate as per order qty
Shipping port Ningbo , Shanghai
Term of Payment 30% TT deposit, the balance is paid before shipping the goods
Package detail inner CTN, ourside ply-wooden case
MOQ 10 PCS/size
Gurantee Period 18 monthes
Capacity to produce 100, 000 PCS/week

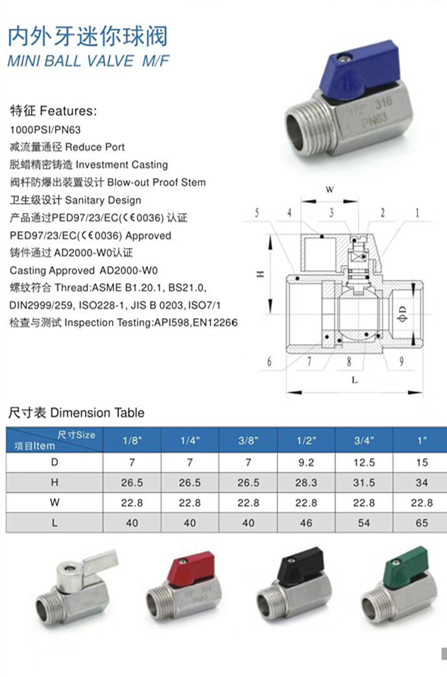

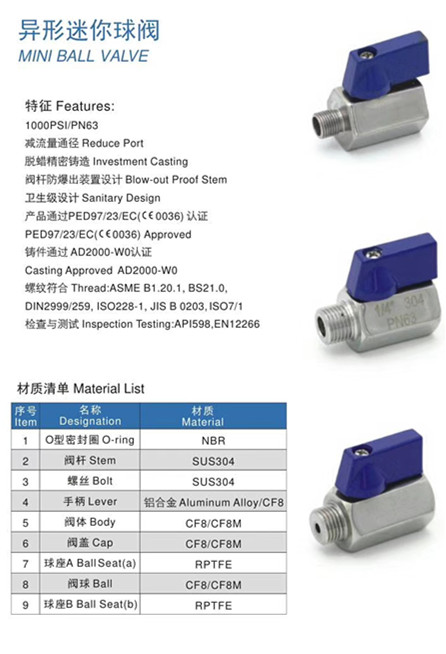

sanitary mini ball valve (3)sanitary mini ball valve (4)
