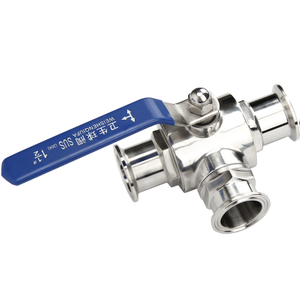

Sanitary Stainless Steel 3-Way Tee Actuated Ball Valve with Mount Pad

This kind of ball valve is a mount pad sanitary ball valve with tri-clamp / tri-clamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow.
Availability:
Quantity:

Sanitary stainless steel triclamp ball valve, 3 way L or T type with mounted pad


Specification:

Sizes: 1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4"/DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body can be AISI 304 or AISI 316L.

Valve seat: Teflon (PTFE)

Max. working pressure: 145psi (10bar)

Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections: tri-clamp / tri-clamp, others available upon request.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

3-way body.

Handle: 90°rotary handle.


Options

End connection can be butt-welded, sanitary tri-clamp, threaded, flanged

Valve body can be three-way: T type or L type ball port

Valve intelligent control: position sensor, air filter, solenoid valve and C-top controller
