Sanitary Stainless Steel Auto Control Divert Valve for Food Industry

Availability:
Quantity:

Sanitary Double Seat Divert Valve


Application:

The pneumatic cut-off reversing valve is change the energy which creative by compressed air to be mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different situation of seal elements, which can control the switch for inlet of pipeline, finally realise the purpose of medium reversing or stop.

.

Materials
Materials: AISI316L, AISI 304
Size: 1''-4''

Seal: PTFE

Options: Silicone, EPDM, Viton

Elastomers: EPDM

Options: Viton, Silicone


Standard Design

  •          forged spherical body

  •          Compact design

  •          360 degree orientation

  •          Over-pressure protection design preventing the pressure fluctuate to 30bar

  •          Easy disassembly

  •          Seat lift type and cavity spray type available

Actuators
Normally Closed (NC) - Air to open and spring to close;
Normally Open (NO) - Air to close and spring to open;
Air to Air (AA) - Air to open air to close.

  •

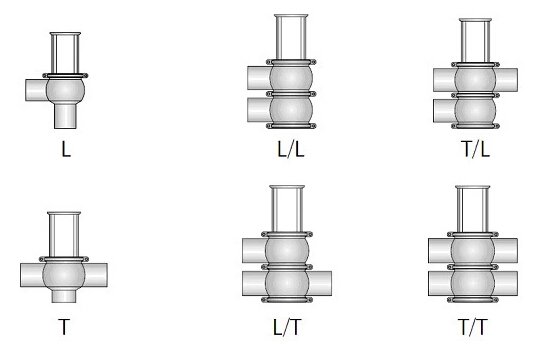

Combination Style:


Technical Specification

Size available 1/2"~4",DN10~DN100
Max. working pressure 147psi (10bar)
Control air pressure 70 ~ 116psi (5 ~ 8bar)
Working temperature range EPDM:-20 ~ 135°C
Sterilization temperature 150°C, Max. 20 min
Pneumatic connection R1/8" (BSP)
Finish Surface <32Ra (<0.8um); Other finishes available upon request.
Flow Medium Parts 304,304L,316L (1.4301,1.4307,1.4404)
