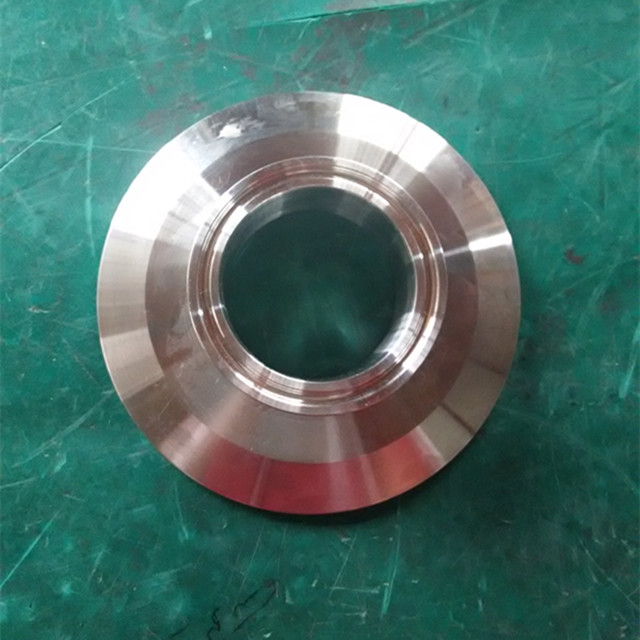

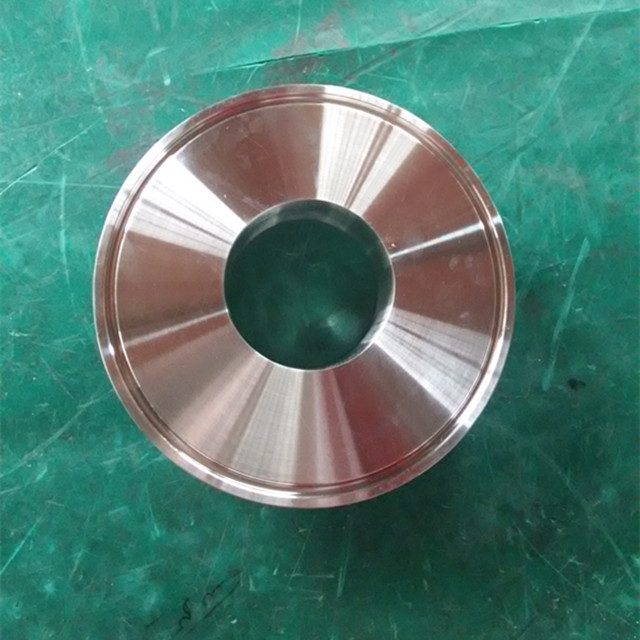

Sanitary Stainless Steel Tri Clamp End Cap Reducer

Sanitary Clamp Concentric Reducers
Available in 304 & 316L Stainless Steel
Fitting clamps to tubing on both ends for a non-permanent seal for easy access

Tri Clamp cap reducers

1. SS304/SS316 optional

2. The smallest end is 3/4", biggest end can be 12", so customized is avaiable, such as 4"x2",3"x1.5" etc

3. DIN/ISO/SMS etc standard are available

Tri Clamp end cap reducers are an alternative to concentric reducers when space is at a premium in confined areas. While they are called reducers, they are often used more as an increaser flowing from smaller to larger diameter which makes them suitable as well in horizontal flow applications, without causing pooling. Their hard 90° edges, however, may cause agitation, in which case a bowl reducer may be a more suitable alternative. Another popular application for cap reducers is being placed vertically atop a Tri Clamp stack and acting as a clean out or sanitation port.

Clamp style connections offer a quick and easy way to disassemble line processing for access to process media and cleaning solution.
