With shuangzhan machinery sampling valves you can take representative samples in a variety of hygienic processes including food, beverage, biopharm. These reliable aspetic valves provide the high accuracy, exceptional reproducibility and excellent reliability required for high quality, cost-effective sampling. The clear and comfortable designed handle ensures exceptional control and convenience during operation.
Design ensures hygienic and contamination-free sampling
Easy to operate
Highly reliable operation (rated to 10 bar) and three year warranty for all metal parts, provides spare gaskets.
Safe sampling through features such as non-return, quick couplings, pressure relief valve for steam and more
Materials: SS316L or SS304
End: 1.5", 1/2" or 3/4" tri clamp end, butt weld end is available
In/out port: 1/2" or 3/4" tri clamp (25.4mm), hose barb, the cap is rubber or metal

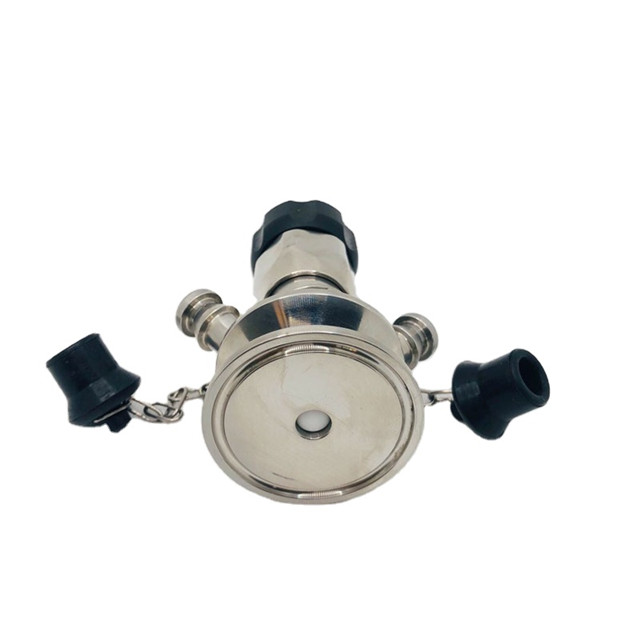

Aseptic sampling valve is made from three parts: valve body, valve head and one piece of diaphragm. A rubber diaphragm valve is put at the axis of valve head, acting as an extensible valve core.
Zero corner design, the real hygienic.
