Sanitary Clamp Ends Safety Pressure Relief Valve -AISI304/316L

variable pressure relief valve 0-10bar (0-145psi)
Availability:
Quantity:

Sanitary Safety Pressure Relief Valve


Retail price-USD130 free shipping.

please email me for discount if quantity over 10pcs.



Specifications:

Body Material: SS304 stainless steel or 316L

Sizes: 1", 1 1/2", 2", 3", 4"

Seal: EPDM

Options: Silicone, Viton (FPM)

Max. pressure setting: 145psi, others upon request.


Application of Sanitary Safety Pressure Relief Valves:

Sanitary stainless steel safety valve, also known as "pressure relief valve", is used to control over pressurization in a process piping system.

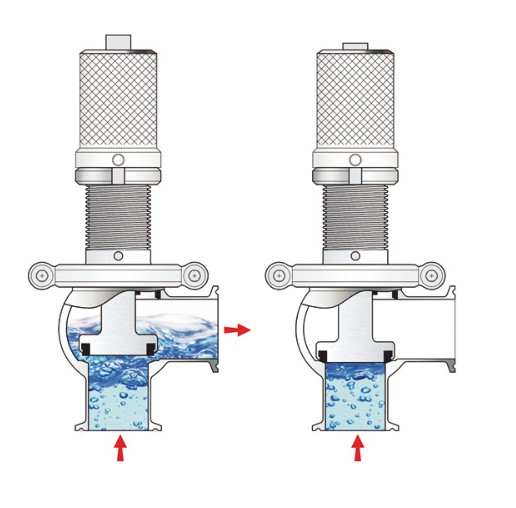

Working principle:

When the line pressure exceeds the limit set for the safety valve, the valve plug will lift and release the pressure through the side port. The valve will remain open until the line pressure decreases to a value lower than the set value.

sanitary-pressure-stainless-steel-safety-valve_副本
