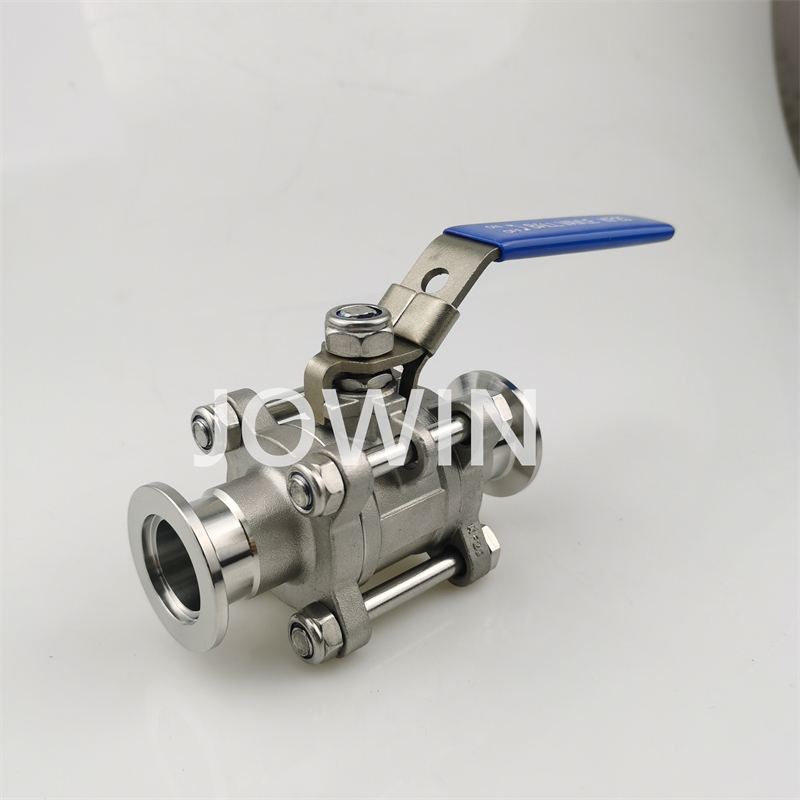

NW25 NW16 SS Manual KF Ball Valve Vacuum Flanges

Helium leaking tested for every valve

Ball Valve, Manual, ISO-KF Interface, NW Vacuum Fittings, Stainless Steel

  • Connecting Flanges: KF16/KF25/KF40/KF50, NW16-NW50

  • Body: 304 Stainless Steel

  • Poppet: 304 Stainless Steel

  • Application temperature: -30 to 150º C

  • Vacuum test:<1pa

  • CNC machined

Vacuum Ball Valves have the advantage of being turned completely off to on in one 90 degree rotation of the handle while offering high gas throughput and conductance. Our vacuum ball valves are designed to have a low leak rate, typically on the order of 1x10-9 std. cc/sec. Helium. These ball valves have standard NW vacuum flange for connection to the vacuum system, are manually operated, and made of stainless steel.

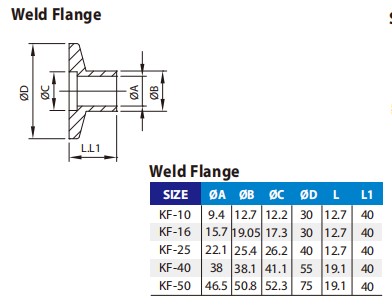

How to determine vacuum flange

All vacuum fittings are based on weld flange, that means you only need to measure the D and B before you determine.

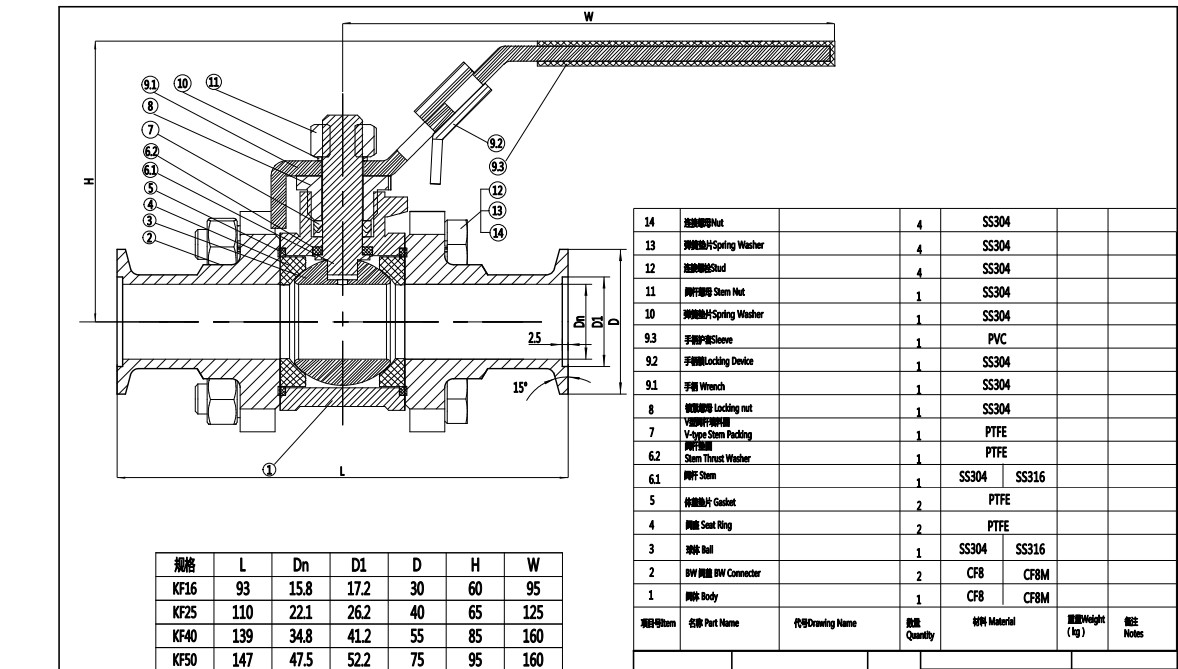

To see if our valve dimensions suitable here.

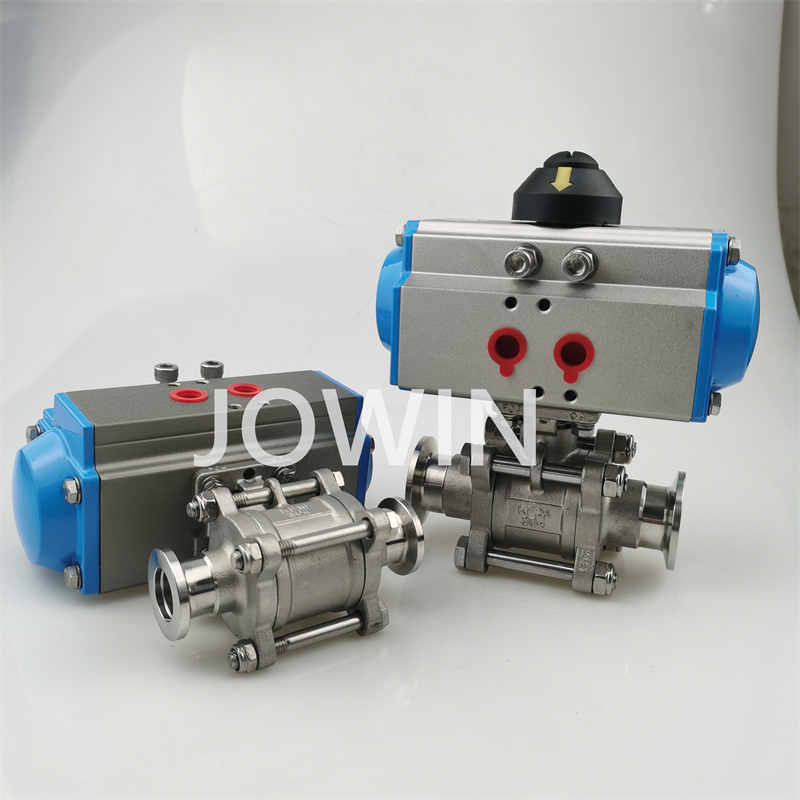

We also do actuated type
