Stainless Steel Manual Bellows Sealed Angle Valves KF Flanged

Reliable, economical, general-purpose components for HV and UHV applications requiring cleanliness and corrosion resistance.
Availability:
Quantity:

Manual Angle Valve KF With Bellows NW16, Stainless Steel

  • Connecting Flanges: KF16/KF25/KF40/KF50, NW16-NW50

  • Body: 304 Stainless Steel

  • Poppet: 304 Stainless Steel

  • Bellows: Welded AM-350

  • Seal: Viton O-Ring

  • Leak Rate: 2 x 10-9 torr to 760 torr Viton seal bonnet

  • Max Pressure Before Opening: 1.2 Bar

  • Bake-Out Limitation: 150º C Viton seal bonnet



Those Stainess Steel manually and pneumatically operated valves are available with bellows and without bellows.

Connecting Flanges are available in KF, ISO, CF types, and Tube ends as well.SHUANGZHAN MACHINERY offers all series angle valves suited for vacuum applications such as high vacuum process processes, high vacuum applications in pumping systems, semiconductor technology and research systems.

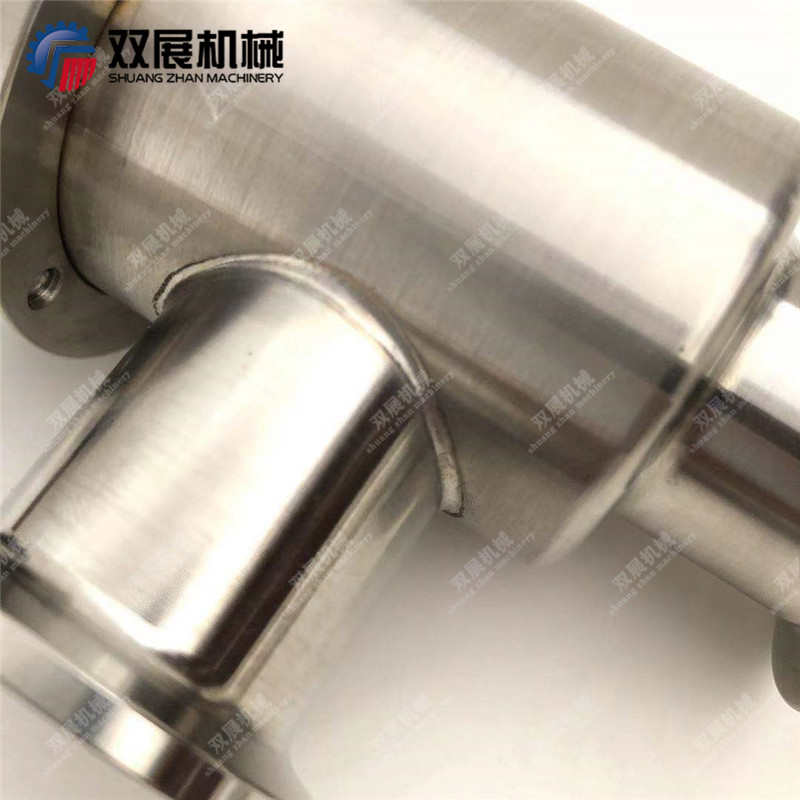

vacuum valve (2)

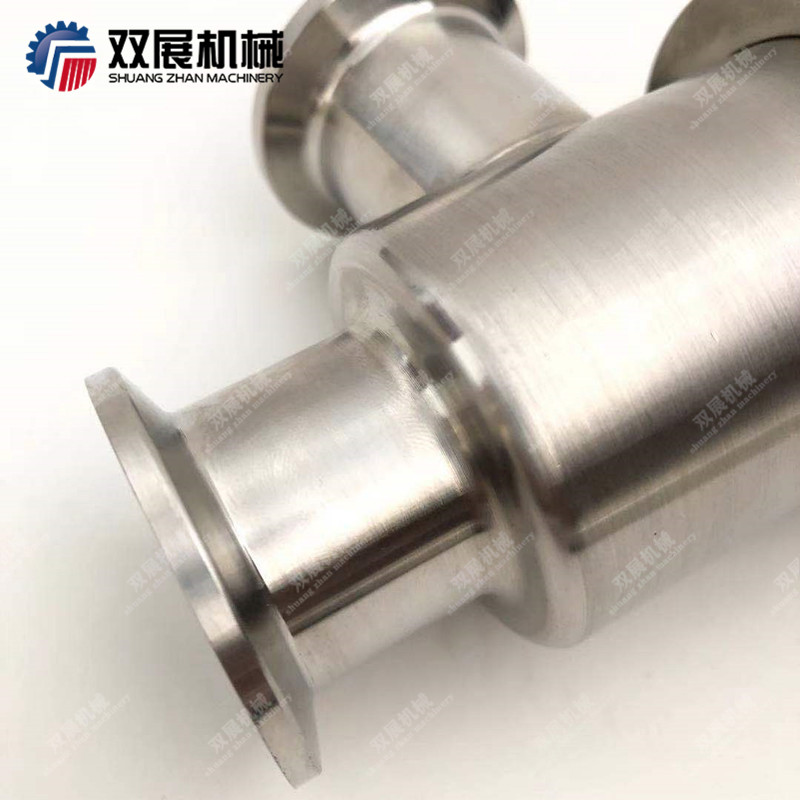

vacuum valve (1)
