Sanitary Stainless Steel Pressure Round Clamp Kettle Manhole Cover

The manway is a ideal way to check or clean tank inside, also can be used as feed port. There are round, Rectangular, Elliptical, and shadowless type of pressure type, 3-4 bar pressure is common use, customized is available.
Availability:
Quantity:

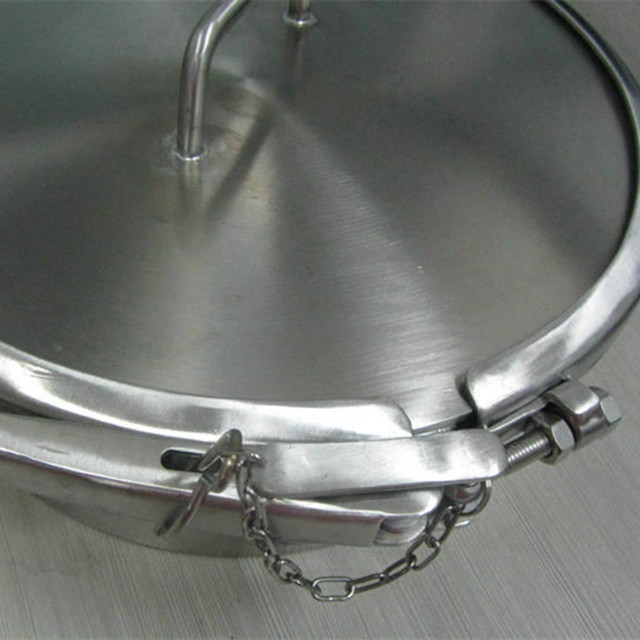

Sanitary round clamp tank manway with flange, this one is 1 bar max pressur type.


The manway is a ideal way to check or clean tank inside, also can be used as feed port. There are round, Rectangular, Elliptical, and shadowless type of pressure type, 3-4 bar pressure is common use, customized is available. Tank pressure manways are available in stainless steel SS304 or SS316 (some are special order). Depending on the size of your tank, your tank manway will be either top or side mounted.


Applications:

Manhole cover( with pressure) is main ly used for pressure vessel in the feilds of food, beverage, chemical,etc.


Specification

DiameterΦ400 and 500
Internal surfaceRa0.8μM-0.5μm
Outside surfacepolishing finished,  matt finished and sand-blasting finished.
Outside pressure2-5 bar
GasketEPDM, NBR, SILICON,FPM
Height100, 120,150mm
MaterialAISI304(1.4301)/ 316l(1.4404)
Application scopefood, beverage,brewing,pahrmacy etc
Packaging detailsstandard exporting package
Delivery detailsusually within 7 days after receiving payment
