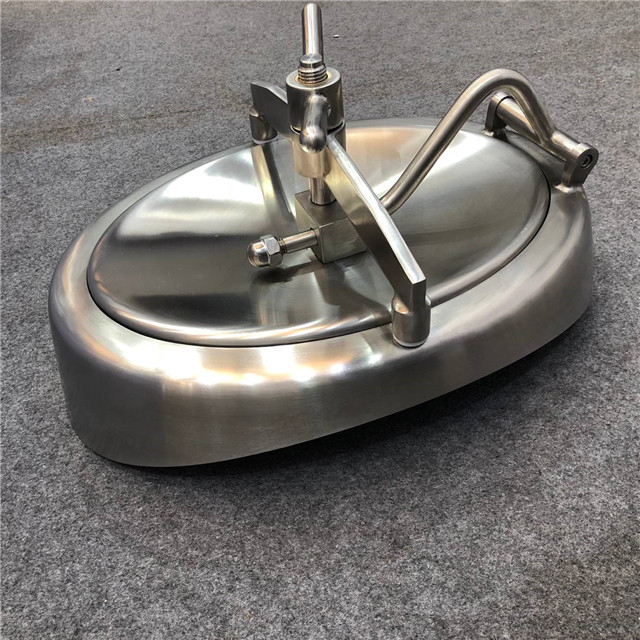

Stainless Steel Tank Manway Cover Eliptical Shadowless

The manway is a ideal way to check or clean tank inside, also can be used as feed port. There are round, Rectangular, Elliptical, and shadowless type of pressure type, 3-4 bar pressure is common use, customized is available.
Availability:
Quantity:

Tank Manway Eliptical Shadowless EPDM/VITON/SILICONE

The manway is a ideal way to check or clean tank inside, also can be used as feed port. There are round, Rectangular, Elliptical, and shadowless type of pressure type, 3-4 bar pressure is common use, customized is available. Tank pressure manways are available in stainless steel SS304 or SS316 (some are special order). Depending on the size of your tank, your tank manway will be either top or side mounted.


Applications:

Manhole cover( with pressure) is main ly used for pressure vessel in the feilds of food, beverage, chemical,etc.


Feature:

  • 4 bar Working Pressure, 5 Bar Design Pressure

  • Can be used on Jacketed and Non-Jacketed Tanks

  • Totally Shadowless Inside Tank

  • Customized Neck Depth

  • Sanitary Stainless Steel SS304

  • Maximum pressure 60 psi.

  • These Manways are Design and Tested at 70PSI


Specification:

Product Name:Elliptical and Oval Manhole Cover
Body MaterialAISI304 or AISI316L
Seal Material:EPDM/SILICONE/NBR/FPM
Max. Working Pressure:4Bar
Available  size:435*335,530*430,635*525
Inside Surface:RA 0.8um-0.5um
Outside SurfacePolishing/Matt/Sand-blasting
