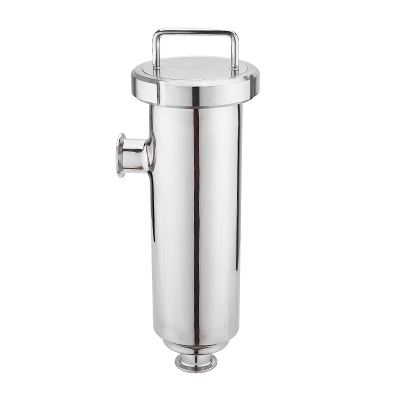

Sanitary Stainless Steel Side Inlet Strainer Assemblies

Availability:
Quantity:

A Standard Strainer Assembly consists of: side inlet filter body, top cover, perforated element, distributor Cap w/handle, clamp and clamp gasket. For additional smaller options and spare parts scroll down.


1. Sanitary straight strainer. When using a straight-line strainer, you have to break the pipe line for cleaning.

2. Sanitary angle strainer. angle-line strainer, you can clean the screen element without removing the strainer from the process line, efficient.
3. Sanitary dual angle-line strainer assembly. You can close the valve (butterfly valve recommened) on one line to clean the
strainer, while the process stream continues to flow through the other. No process interruption, you can add pressure gauge with the strainers as well.


Shuangzhan machinery can attach wedgwire element both in straight and angle line strainer, micron from 50 to 5000. We not only sell complete strainer, but also sell rigid element, strainer body, clamp and seals.


Spec.:
1. material: AISI304, AISI316
2. ends option: welded, clamped, threaded
3. strainer body diameter: 76mm, 89mm, 102mm etc, customized is available
4. length: 310mm or customized

5. end size: 3/4", 1", 1.5",2",2.5",3",4"

6. working pressure: 0 ~ 10bar (0 ~ 145psi)

7. working temperature: -10 ~ +120°C (EPDM)

8. seal: Silicon, EPDM, PTFE,
