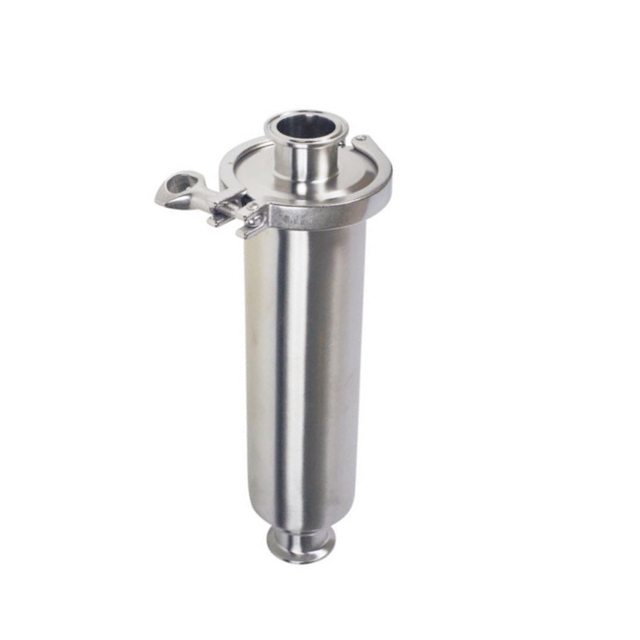

Sanitary Stainless Steel Tri Clover Compatible TC Inline Filter

Availability:
Quantity:

Sanitary filter/Strainer with Stainless Steel perforated screen and secondary mesh-two filter steps.


TC Inline Sanitary Filter made out of 304 stainless steel. It´s filter uses 150 Micron Stainless Steel Mesh with a 2 mm Perforated Screen.

When attached to your setup it provides inline filtering and can be easily removed and disassembled for fast cleaning. It's recommended that you place it after a pump and before a plate chiller to reduce the amount of debris entering the chiller. The mesh is sized to be porous enough so as not to clog but to still traps large solids.


Specifications:

Materials: SUS304/SUS316L, 1.4301/1.4404

Size:DN25-DN100, 1"-4"

Type: Y type, Angle Type,Inline, Sraight

Connection: Clamped, Welded, Thread

Gasket: Silicone, FPM, NBR

Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)

14℉ to 248℉

Max pressure: 10Bar,145PIS

Screen:30-300meshes

Screen Hole:0.5mm-2mm

Surface: Inside RA≤0.8um,Outside: Mirror Polished
