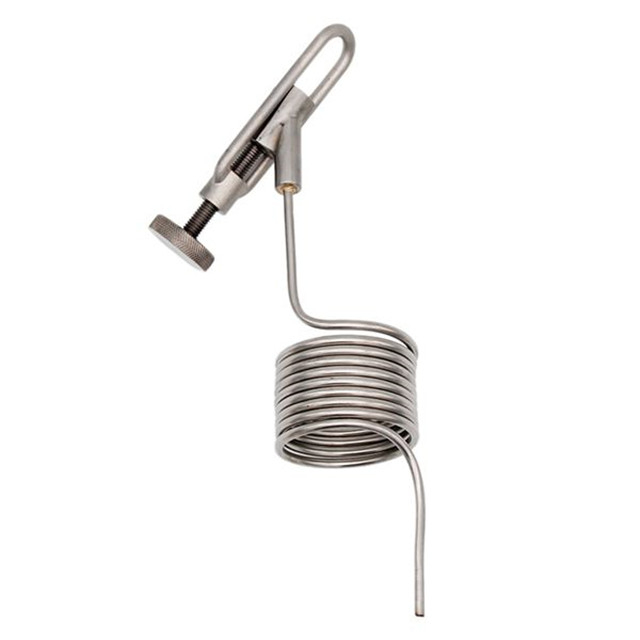

Stainless Steel Pigtail Sampling Coil for Knob Style Sampling Valves

if your beer is carbonated in a Unitank or Brite Tank, you can't simply open up the sample valve or you'll have a cup (or face) full of foam. The Pig Tail Proof Sample Coil must be used with our lever-style TC Sample Valve which is available separately.

Quantity:

if your beer is carbonated in a Unitank or Brite Tank, you can't simply open up the sample valve or you'll have a cup (or face) full of foam. The Sample Coil must be used with our lever-style TC Sample Valve which is available separately.


Only interfaces with unitank and brite tank lever style sample valves and Knob Style Sampling Valves

All 304 Stainless 10 Turn Proof Coil

5.5 feet of stainless coil allows for sampling under pressure

Coil is welded to compression body

Compatible with all Unitanks

Compatible with all Pro Unitanks

Stainless tubing is 3 mm ID and 4 mm OD

Sampling valve NOT INCLUDED


With shuangzhan machinery sampling valves you can take representative samples in a variety of hygienic processes including food, beverage, biopharm. These reliable aspetic valves provide the high accuracy, exceptional reproducibility and excellent reliability required for high quality, cost-effective sampling. The clear and comfortable designed handle ensures exceptional control and convenience during operation.


Valve Features:

  • Design ensures hygienic and contamination-free sampling

  • Easy to operate

  • Highly reliable operation (rated to 10 bar) and three year warranty for all metal parts, provides spare gaskets.

  • Safe sampling through features such as non-return, quick couplings, pressure relief valve for steam and more


Materials: SS316 body
End: 1/2" tri clamp end with 10mm hose barb
Diaphragm: food grade FKM
