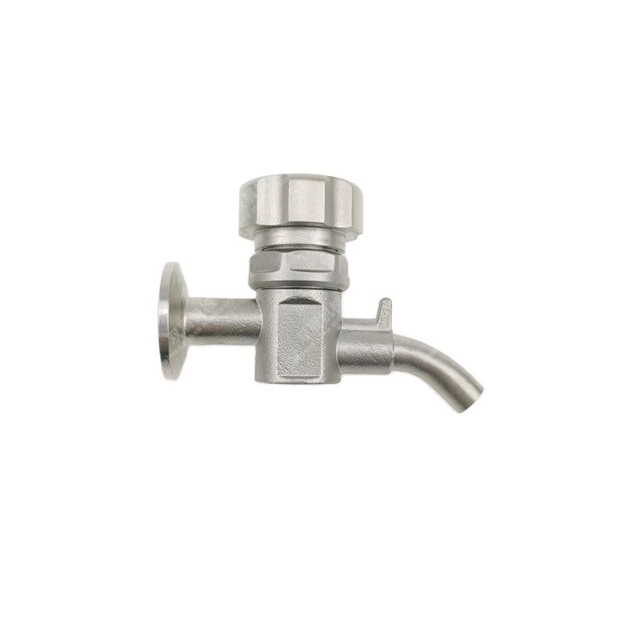

TC 34 mm Tri Clamp Sample Valve Brewtools

TC 34mm, pig tail type
Quantity:

Stainless steel sample faucet for brewing tanks.


Sample Valve for Unitanks to take samples. Use together with Coil for Sample Valve for less foam.


With shuangzhan machinery sampling valves you can take representative samples in a variety of hygienic processes including food, beverage, biopharm. These reliable aspetic valves provide the high accuracy, exceptional reproducibility and excellent reliability required for high quality, cost-effective sampling. The clear and comfortable designed handle ensures exceptional control and convenience during operation.


Features:

  • Design ensures hygienic and contamination-free sampling

  • Easy to operate

  • Highly reliable operation (rated to 10 bar) and three year warranty for all metal parts, provides spare gaskets.

  • Safe sampling through features such as non-return, quick couplings, pressure relief valve for steam and more


Materials: SS316L body
End: 3/4" tri clamp end (34mm), but 25.2mm is ok to make.
Diaphragm: food grade EPDM

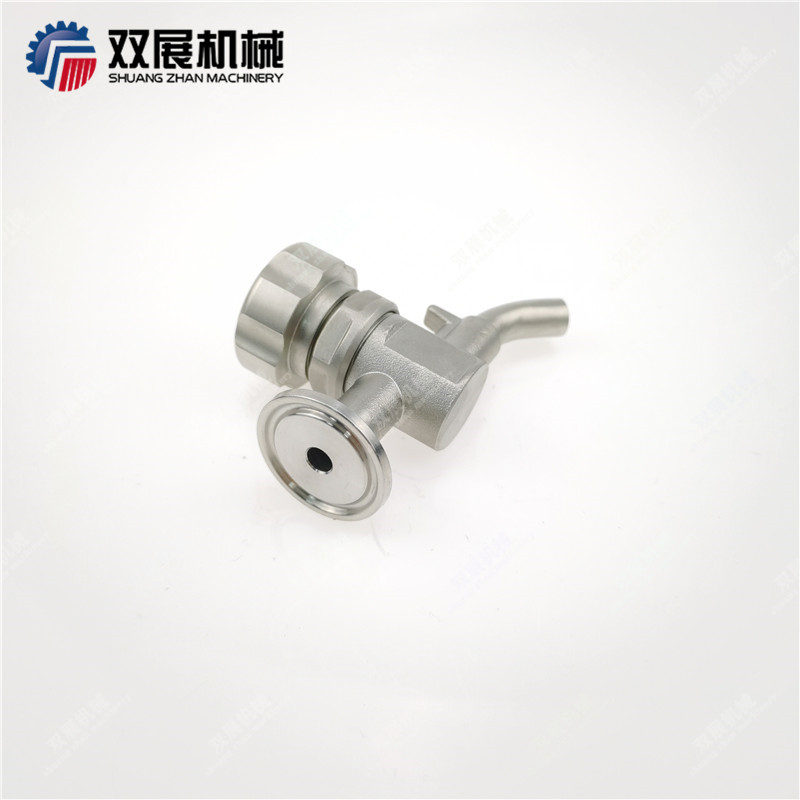

tcsamplevalves (2)

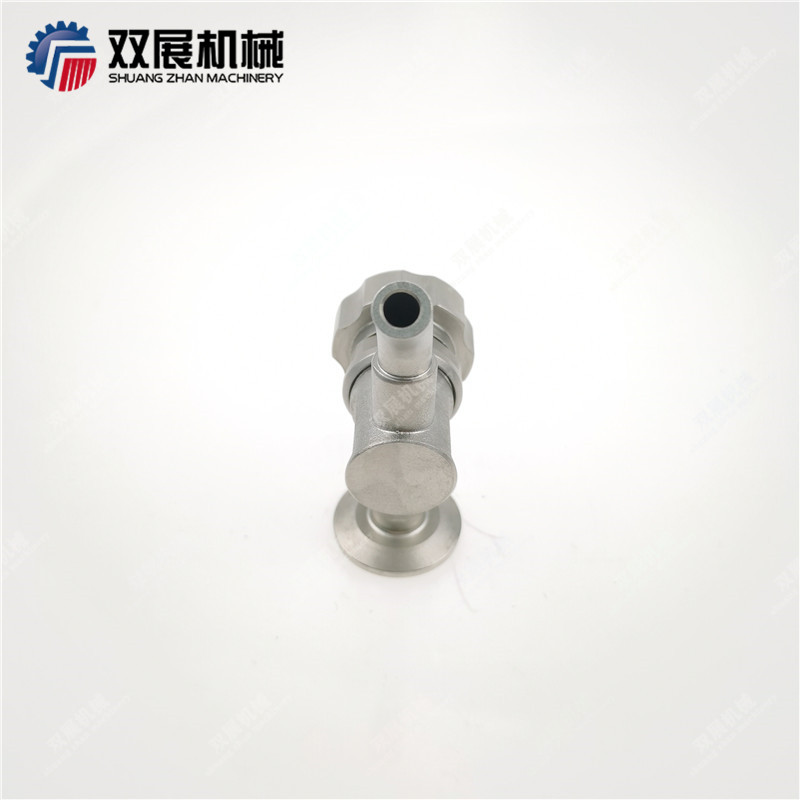

tcsamplevalves (6)
