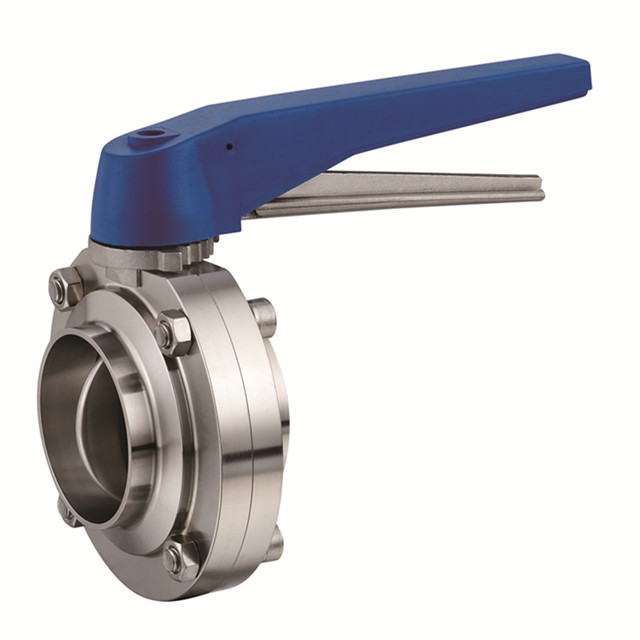

Sanitary Manual Welded Butterfly Valve EPDM Sealing Stainless Steel

Availability:
Quantity:


Specification:

Sizes available: 1/2" to 12" /DN15 - DN300

Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with Silicone seat.

End connections: clamp to clamp, weld to weld, male to weld, male to clamp, male to male, clamp to weld, flanged

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.


Actuators operation:

1. pneumatic stainless steel actuator, vertical type, also known as spring return or single acting.

2. pneumatic horizontal type actuator, we can make this actuator in aluminum or stainless steel, there are double acting and single acting.

3. electric actuator


Common methods:

Normally closed (fail closed)

Normally open (fail open)

Double acting---air to open, air to close

Intelligent control: position sensor, C-top controller, C-top controller





SS304-316L-Stainless-Steel-Sanitary-Butterfly-Valve-DY-BV1007- (1).jpg
