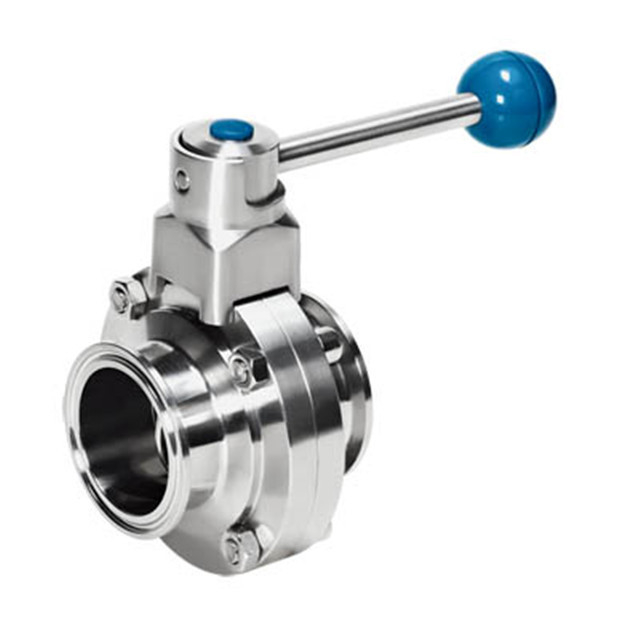

Sanitary SS Manaul Clamped Butterfly Valve Square Pull Handle

Quantity:

Butterfly Valve Flanged Ends with Pull Handle

Specification:

Sizes available: 1/2" to 12" /DN15 - DN300

Material: AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with Silicone seat.

End connections: clamp to clamp, weld to weld, male to weld, male to clamp, male to male, clamp to weld, flanged

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm).



Options:

  • The seat and gasket can be EPDM, Silicone or Viton .

  • Handles: 3 or 4 positions pull handle, trigger handle with glass fiber or in 304 stainless steel.

  •

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)

  • NO operated: normally open (fail open)

  • AA operated: double acting---air to open, air to close

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)



SS304-316L-Stainless-Steel-Sanitary-Butterfly-Valve-DY-BV1007- (1).jpg
