Sanitary Tri Clover Compatible Butterfly Valve Stainless Steel 304/316L

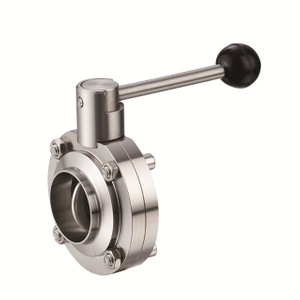

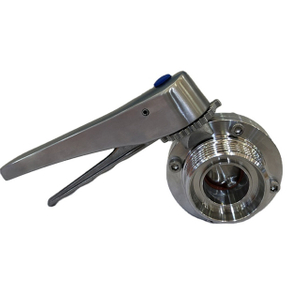

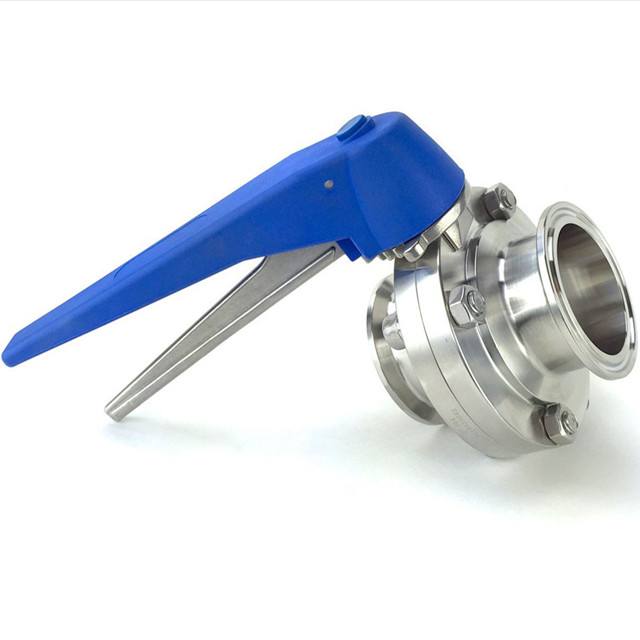

Tri Clamp butterfly valves are an elegant and dependable solution for either a shutoff service, or as a flow control valve to reduce volume. Designed for Tri Clamp fittings and made from stainless steel SS304 or SS316, our trigger handle butterfly valves feature a fiberglass handle with 12 locking positions, that allow flow control typically desired on a racking arm. Our pull handle valves feature a blue ball handle with 3 locking positions. Valves comes with either a silicone or EPDM seat.

Quantity:

Specification:

Sizes available: 1/2" to 12" /DN15 - DN300

Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Max. working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".

Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with Silicone seat.

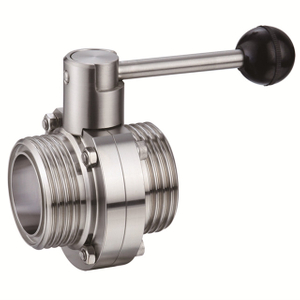

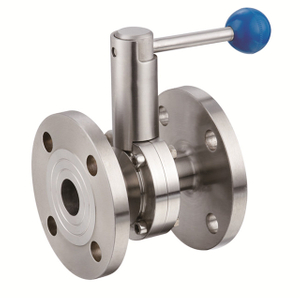

End connections: clamp to clamp, weld to weld, male to weld, male to clamp, male to male, clamp to weld, flanged

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.



Options:

  • The seat and gasket can be EPDM, Silicone or Viton .

  • Handles: 3 or 4 positions pull handle, trigger handle with glass fiber or in 304 stainless steel.

  •

Actuators operation:

1. pneumatic stainless steel actuator, vertical type, also known as spring return or single acting.

2. pneumatic horizontal type actuator, we can make this actuator in aluminum or stainless steel, there are double acting and single acting.

3. electric actuator.


Common methods:

Normally closed (fail closed)

Normally open (fail open)

Double acting---air to open, air to close

Intelligent control: position sensor, C-top controller, C-top controller





SS304-316L-Stainless-Steel-Sanitary-Butterfly-Valve-DY-BV1007- (1).jpg
