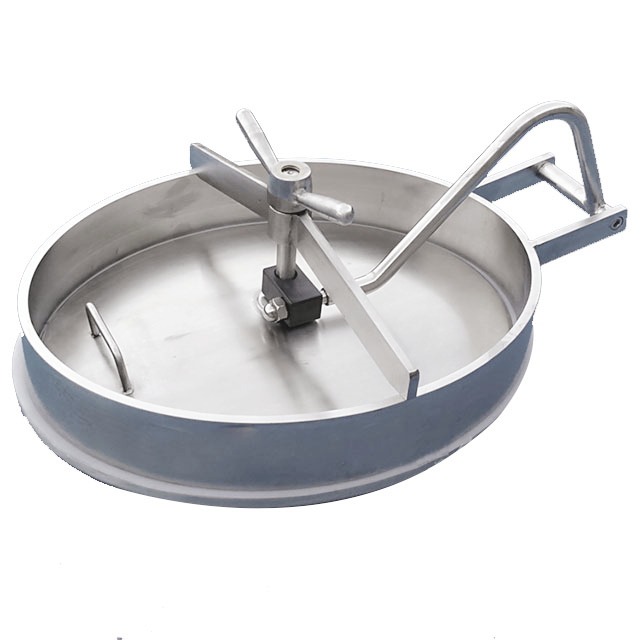

Sanitary SS304/316L Inner Opening Elliptical Man Hole Cover (oval man way)

The manway is a ideal way to check or clean tank inside, also can be used as feed port. There are round, Rectangular, Elliptical, and shadowless type of pressure type, 3-4 bar pressure is common use, customized is available.
Availability:
Quantity:

AISI304/316L Inner Opening Elliptical Man Hole Cover (oval man way)


The manway is a ideal way to check or clean tank inside, also can be used as feed port. There are round, Rectangular, Elliptical, and shadowless type of pressure type, 3-4 bar pressure is common use, customized is available. Tank pressure manways are available in stainless steel SS304 or SS316 (some are special order). Depending on the size of your tank, your tank manway will be either top or side mounted.

Applications:

Manhole cover( with pressure) is main ly used for pressure vessel in the feilds of food, beverage, chemical,etc.


Materials and specification:

Inner opening manhole cover
Spanner type handle, wheel handle
Size:435×335, 530×430, 635×525
Internal surface:Ra0.8μm-0.5μm
Outside surface:Polishing finished,  matt finished and sand-blasting finished.
Max. pressure: 0.5 bar- 3.0 bar
Gasket: EPDM, NBR, SILICON,FPM
Height:75, 100, 120,150mm( height and the thickness can be as per customers request)
Material: AISI304(1.4301)/ 316l(1.4404)
