- SS316/SS304 Stainless Steel
- Information supplied based on water media at 68°F.
- All wetted surfaces are sanitary finished to<32RA.
- Seat materials availible in Silicon, EPDM or Viton.
- Minimum supply air line pressure 80 PSI.
- Operating temperature range: 15°F to 200°F.
Sizes available: 1/2" to 12" / DN15 - DN300
Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Max. working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".
Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with Silicone)seat.
Operation:Pneumatic
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Options:
Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
The seat and gasket can be EPDM, Silicon or Viton

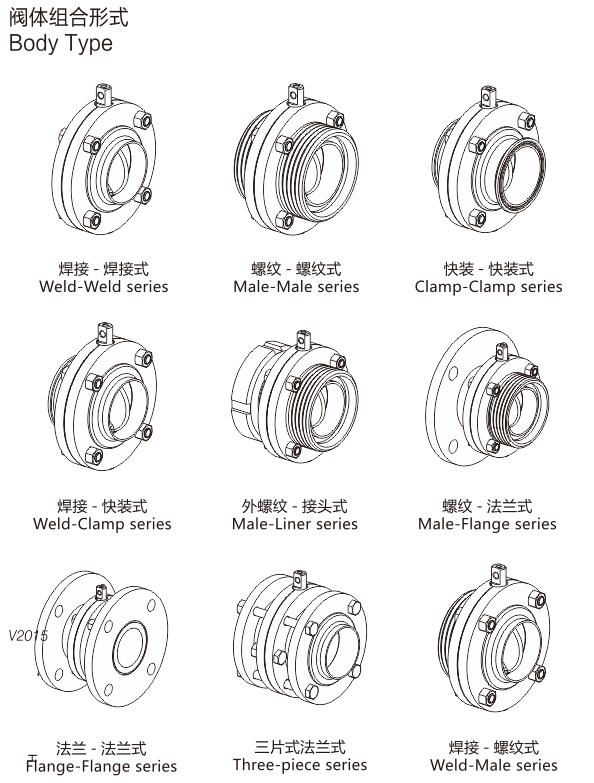

End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.
Handles: 3 or 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

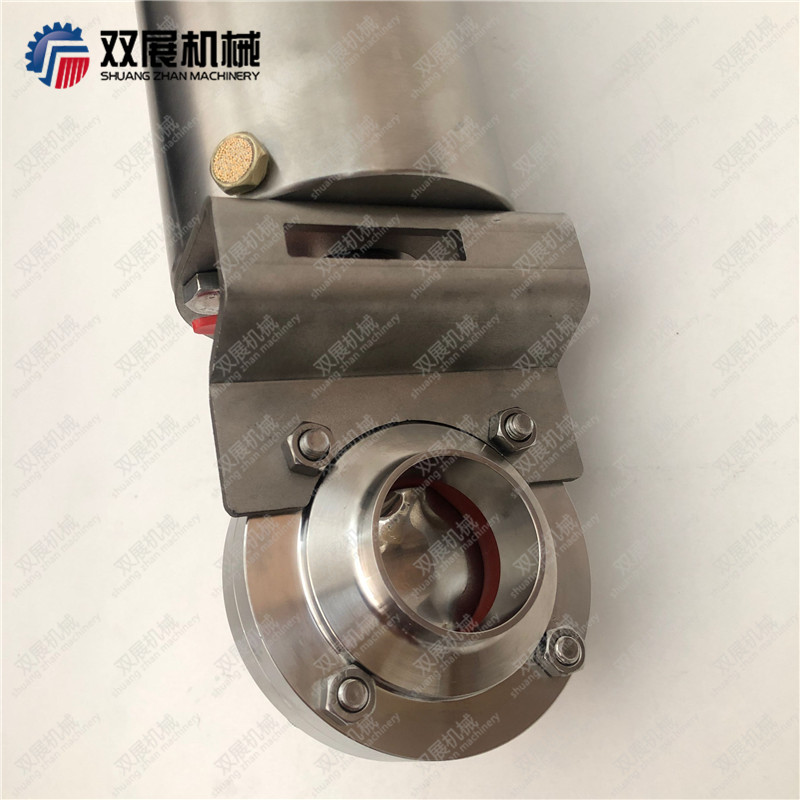

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.
NC operated: normally closed (fail closed)
NO operated: normally open (fail open)
AA operated: double acting---air to open, air to close
Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
Technical Data
| Standard | DIN,SMS etc. |
| Body material | 304,304L,316L(1.4301,1.4307,1.4404) available |
| Size available | DN10-300 or 1/2"-12" |
| Ends option | weld, triclamp, male, flange |
| Valve seat | silicone, EPDM, Viton, NBR, PTFE |
| Application | it is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc |
| Working principle | remote-controlled operation by the driving gear or manual operation by handlee. |
| Three drive | normally closed, normally opened and opened and closed by two air flues seperate. |

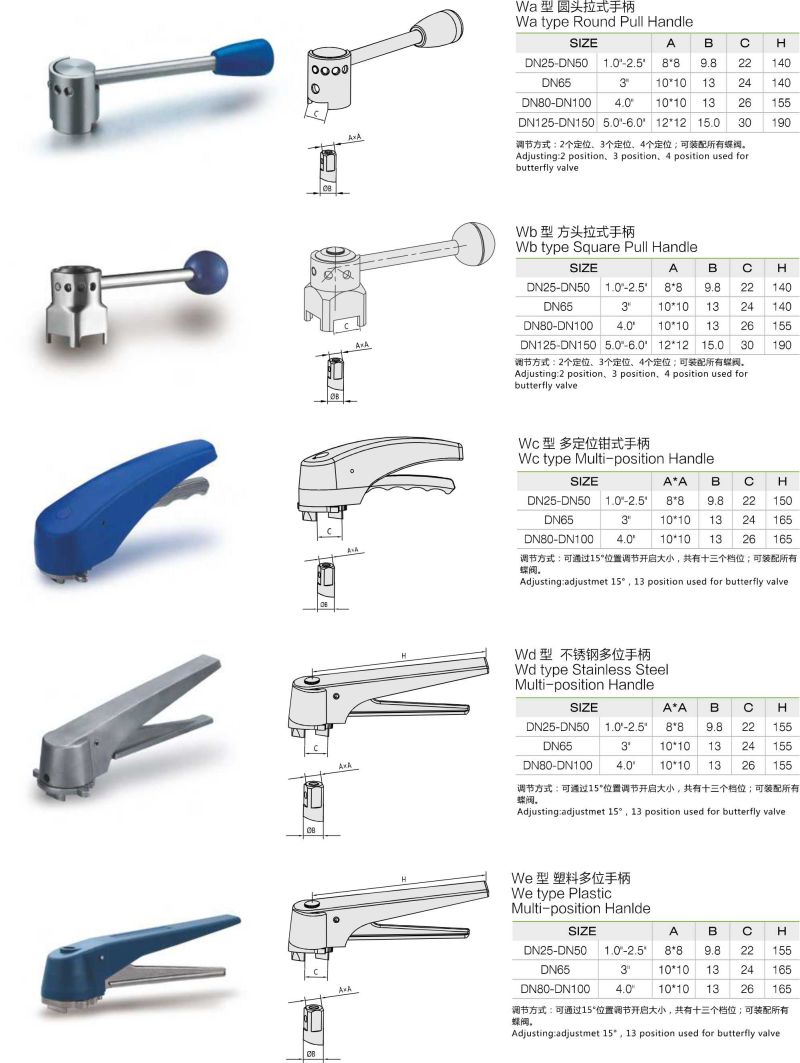

Handle option | stainless steel pull handle, Glass fibre trigger handle, stainless steel trigger handle |
| sdjustable handle, built to order according to users' request. | |
| Advantage | 1.sanitary condition |
| 2.with strong resistance to acid, alkali and high temperature | |
| 3.slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages | |
| 4.appearance desigh: Keep pace with international latest designs | |
| 5.service life: Comparable to imported butterfly valve, with 18months warrenty for normal use |
