Sanitary Stainless Steel Full Sight Glass Mash Tun Tank Manway Cover 15psi

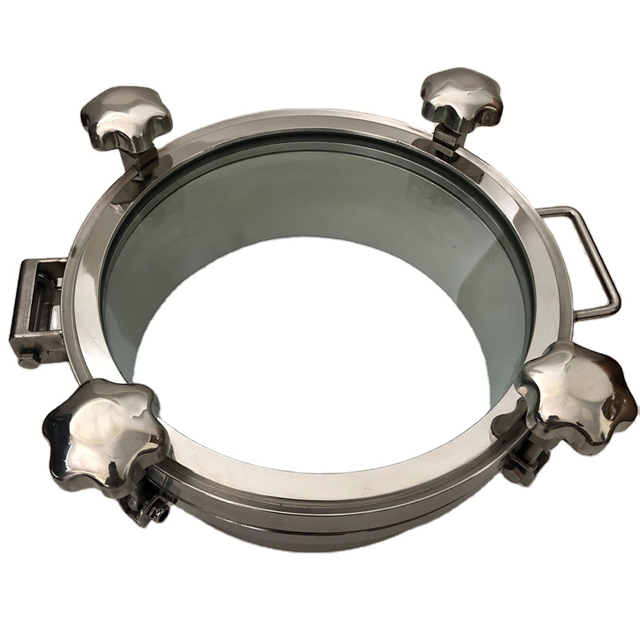

This kind of manhole is with tempered borosilicate glass, a full sight glass type. Our sight glass manhole is different of others in flange and glass, we only use thicker glass to make sure it gives 1bar pressure, the most important is we use two flanges to mount the glass.
Availability:
Quantity:

This kind of manhole is with tempered borosilicate glass, a full sight glass type. Our sight glass manhole is different of others in flange and glass, we only use thicker glass to make sure it gives 1bar pressure, the most important is we use two flanges to mount the glass.

  • stainless steel wheels, other type of wheels is optional.

  • 100mm neck, can be customized.

  • silicon/viton/epdm gasket for optional.

  • ss304/ss316.


Tank pressure manways are available in stainless steel SS304 or SS316 (some are special order). Depending on the size of your tank, your tank manway will be either top or side mounted. Rectangular manways are commonly side mounted in mash tuns to facility the removal of grain. Elliptical manways are often found on bright beer tanks and fermenters, and offer both an inward and outward swinging door. Shadowless manways are designed to be mounted flush with the exterior of the tanks, thus creating no interior protrusions, or a lip inside, where unsanitary conditions can build up; they are recommended instead of their oval counterparts. Round manways are simply designed to be an access port for pressurized brewing systems. The maximum manway pressure rating is 60 PSI, but all manways are tested at 70 PSI.

  • bar design pressure

  • Gaskets can be Silicone and EPDM.

  • Main body : AISI304 /316L

  • Gasket EPDM, NBR,SILICON, FPM

  • Internal surface: Mirror polish or brushed

  • External surface :polish, brushed, sandblast

  • Wider necks are available.
